DNB3063S - Hydraulic Trailer Tipping Cylinder under body for Trailer or Ute - 4 Stage, 790mm Stroke, 112mm Diameter

$432.00

More info.

Make 4 interest-free payments of $108.00 fortnightly and receive your order now.

In Stock


Calculate Shipping

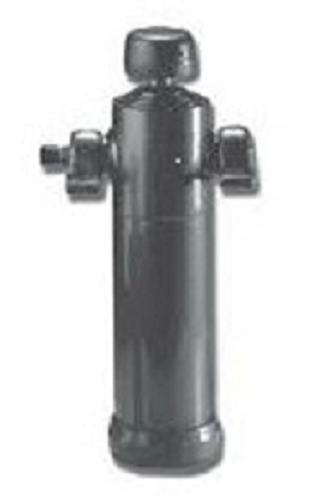

UNDERBODY CYLINDER for Ute / Small Trailer

MAKE: Interpump “Made in Italy”

TYPE: Under Body Cylinder

MODEL: DNB3063S

DETAILS: 112mm Diameter, 4 Stages, 790mm Stroke

PIVOT CENTRE FOR 50°:  950mm

TIPPING CAPACITY:  Nom:  5 / Max:  8.5  @ 170 Bar

Closed Height including 20mm pullout: 380mm

WEIGHT:  21kgs

OILVOLUME: 3.2 Litres

  • Premium “Italian” manufactured cylinders
  • Stages machined from seamless hot rolled tubes
  • Very large overlap – double bottom guides
  • Higher max working pressure of 200 Bar
  • Chromed piston rod as standard
  • Pressure and double lip wiper seals in plyurethane
  • High quality finish pn the OD of all tubes
  • Swivel oil Inlet
  • Weldable cup
  • Port hole at 90degrees from the front directly out of the trunnion

Warranty:  12 month manufacturers subject to approval



FURTHER INFORMATION

Truck and Trailer Parts stock and can source Hydraulic Cylinder / Tipping Hoists and seal kits for most applications. Our range of tipping hoists consists of the following:

· Suitable for Tipper Bodies, Dog Trailers, Semi Trailers, B Doubles

· Available in Well Mount (Underbody) and Front Mount

· Many different stroke sizes to ensure ideal tipping angle of 48 degrees

· Standard and Raised Trunion available

· Comes complete with feet and clevis

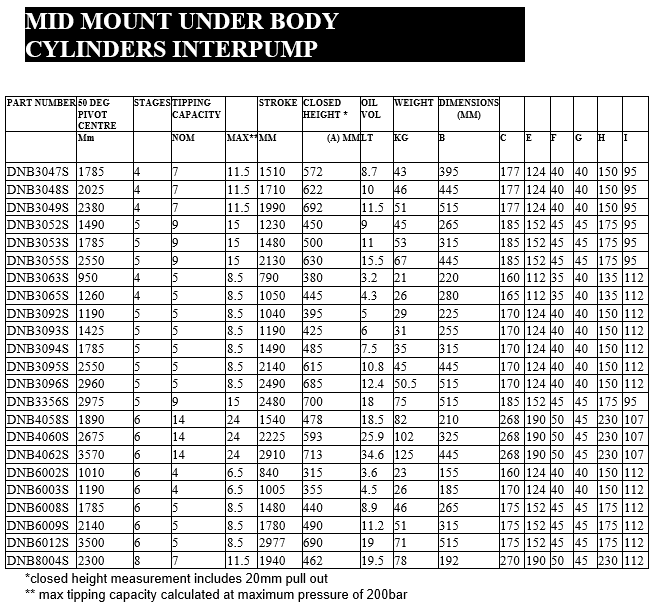

PART NUMBER 50 DEG PIVOT CENTRE STAGES TIPPING
CAPACITY
STROKE CLOSED
HEIGHT*

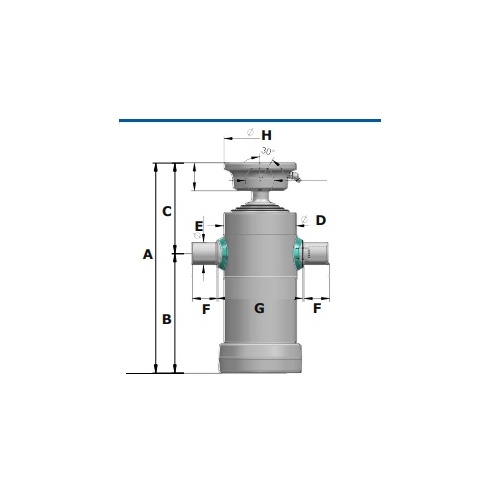

OIL VOL WEIGHT DIMENSIONS (MM)
  MM   NOM MAX.** MM (A) MM LT KG B C E Ø F Ø G H I Ø
DNB3047S 1785 4 7 11.5 1510 572 8.7 43 395 177 124 40 40 150 95
DNB3048S 2025 4 7 11.5 1710 622 10 46 445 177 124 40 40 150 95
DNB3049S 2380 4 7 11.5 1990 692 11.5 51 515 177 124 40 40 150 95
DNB3052S 1490 5 9 15 1230 450 9 45 265 185 152 45 45 175 95
DNB3053S 1785 5 9 15 1480 500 11 53 315 185 152 45 45 175 95
DNB3055S 2550 5 9 15 2130 630 15.5 67 445 185 152 45 45 175 95
DNB3063S 950 4 5 8.5 790 380 3.2 21 220 160 112 35 40 135 112
DNB3065S 1260 4 5 8.5 1050 445 4.3 26 280 165 112 35 40 135 112
DNB3092S 1190 5 5 8.5 1040 395 5 29 225 170 124 40 40 150 112
DNB3093S 1425 5 5 8.5 1190 425 6 31 255 170 124 40 40 150 112
DNB3094S 1785 5 5 8.5 1490 485 7.5 35 315 170 124 40 40 150 112
DNB3095S 2550 5 5 8.5 2140 615 10.8 45 445 170 124 40 40 150 112
DNB3096S 2960 5 5 8.5 2490 685 12.4 50.5 515 170 124 40 40 150 112
DNB3356S 2975 5 9 15 2480 700 18 75 515 185 152 45 45 175 95
DNB4058S 1890 6 14 24 1540 478 18.5 82 210 268 190 50 45 230 107
DNB4060S 2675 6 14 24 2225 593 25.9 102 325 268 190 50 45 230 107
DNB4062S 3570 6 14 24 2910 713 34.6 125 445 268 190 50 45 230 107
DNB6002S 1010 6 4 6.5 840 315 3.6 23 155 160 124 40 40 150 112
DNB6003S 1190 6 4 6.5 1005 355 4.5 26 185 170 124 40 40 150 112
DNB6008S 1785 6 5 8.5 1480 440 8.9 46 265 175 152 45 45 175 112
DNB6009S 2140 6 5 8.5 1780 490 11.2 51 315 175 152 45 45 175 112
DNB6012S 3500 6 5 8.5 2977 690 19 71 515 175 152 45 45 175 112
DNB8004S 2300 8 7 11.5 1940 462 19.5 78 192 270 190 50 45 230 112
*closed height measurement includes 20mm pull out
** max tipping capacity calculated at maximum presure of 170bar

(JOT-DNB3063S)
