Kit 2 x Hydraulic Cylinder Agram 2.5"x 8" Stroke with 1 x 12Volt Single Acting Powerpack

$1,230.62

More info.

Make 4 interest-free payments of $307.65 fortnightly and receive your order now.

In Stock


Calculate Shipping

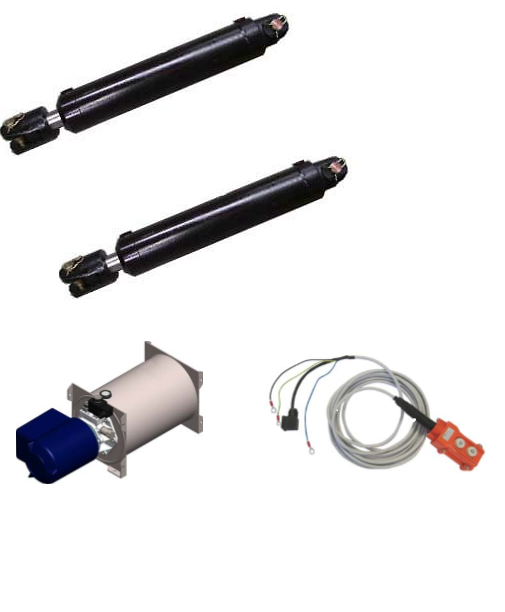

Pair of Agrams comes with Powerpack

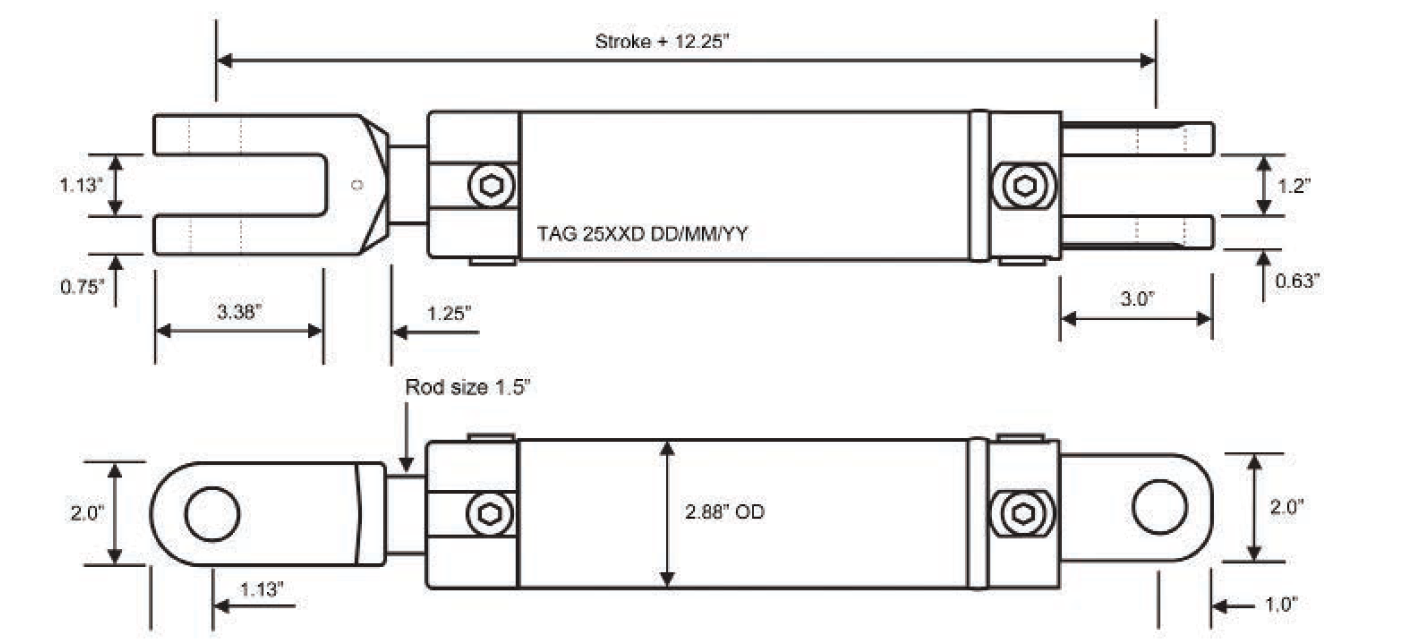

Item A x 2: AGRAM – Hydraulic Ram, Cylinder (Agricultural)



MODEL:  DA-0350640203RE

DETAILS:  2.5” Bore, 514mm Long, Double Acting Cylinder

BORE DIAMETER:  2.5” (63.5mm)

ROD DIAMETER:  1.375” (35mm)

STROKE:  8” (203mm)

PIN TO PIN MEASUREMENT:  Closed-514mm / Open-717mm

PORT (BSPP):  1/2"

CLEVIS PIN:  1”

INCLUDED:  Steel Piston & five piece seal and forged clevis



Item A x 1: 12V Single Acting Hydraulic Powerpack.



MAKE:  Hydroven

MODEL:  HCPPSA12V08LT

FEATURES:

  • 12V / 1800 w
  • Max Pressure: 300 Bar
  • Reservoir: 8Lt Steel
  • Single acting pendant control
  • Dimensions: Refer to image
  • MOUNTING:  Horizontal
  • Available in 12v or 24v and also 5Lt, 8Lt or 15Lt tanks.



Our range consists of the following:



AGRAM 2.5" BORE









Part #

Bore Dia in (mm)

Rod Dia in (mm)

Stroke

Pin to Pin

Port (BSPP)

(IN)

(mm)

Closed

Open

MET-AR2515008

2.5" (63.5)

1.375" (35)

8

203

514

717

1/2"

MET-AR2515010

10

254

565

819

MET-AR2515012

12

305

616

921

MET-AR2515016

16

406

717

1123

MET-AR2515018

18

457

768

1225

MET-AR2515020

20

508

819

1327

MET-AR2515024

24

610

921

1531

MET-AR2515030

30

762

1073

1835

MET-AR2515036

36

914

1225

2139

MET-AR2515048

48

1219

1530

2749





AGRAM 3.0" BORE









Part #

Bore Dia in (mm)

Rod Dia in (mm)

Stroke

Pin to Pin

Port (BSPP)

(IN)

(mm)

Closed

Open

MET-AR3015008

3" (76.2)

1.5" (38.1)

8

203

514

717

1/2"

MET-AR3015012

12

305

616

921

MET-AR3015016

16

406

717

1123

MET-AR3015018

18

457

768

1225

MET-AR3015020

20

508

819

1327

MET-AR3015024

24

610

921

1531

MET-AR3015030

30

762

1073

1835

MET-AR3015036

36

914

1225

2139

MET-AR3015048

48

1219

1530

2749





AGRAM 3.5" BORE









Part #

Bore Dia in (mm)

Rod Dia in (mm)

Stroke

Pin to Pin

Port (UNO)

(IN)

(mm)

Closed

Open

MET-AR3517508

3.5" (88.9)

1.75" (44.45)

8

203

514

717

3/4"

MET-AR3517512

12

305

616

921

MET-AR3517516

16

406

717

1123

MET-AR3517518

18

457

768

1225

MET-AR3517520

20

508

819

1327

MET-AR3517524

24

610

921

1531

MET-AR3517536

36

914

1225

2139

MET-AR3517548

48

1219

1530

2749





AGRAM 4.0" BORE









Part #

Bore Dia in (mm)

Rod Dia in (mm)

Stroke

Pin to Pin

Port (UNO)

(IN)

(mm)

Closed

Open

MET-AR4017508

4.0" (101.6)

1.75" (44.45)

8

203

514

717

3/4"

MET-AR4017512

12

305

616

921

MET-AR4017516

16

406

717

1123

MET-AR4017518

18

457

768

1225

MET-AR4017520

20

508

819

1327

MET-AR4017524

24

610

921

1531

MET-AR4017536

36

914

1225

2139

MET-AR4017548

48

1219

1530

2749





(KIT-AG2.5-8-X2_PPSA12V8L_)

SKU KIT-AG2.5-8-X2_PPSA12V8L_
Brand Unbranded/Generic
Shipping Weight 38.0000kg
Shipping Width 0.600m
Shipping Height 1.150m
Shipping Length 0.500m
Shipping Cubic 0.345000000m3
Unit Of Measure ea
