Truck Trailer 80mm Bore 914mm Stroke, Side Tipper Agram Cylinder 35mm Rod
More infoMake 4 interest-free payments of $85.96 fortnightly and receive your order now.

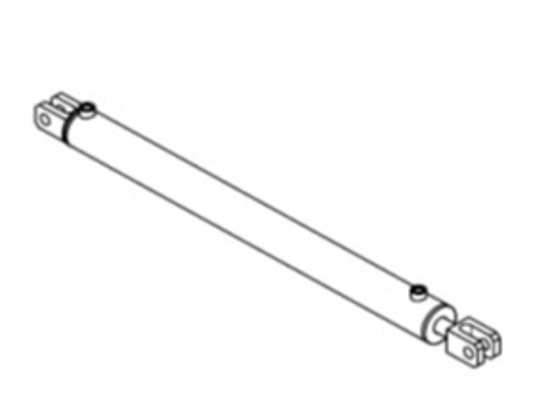

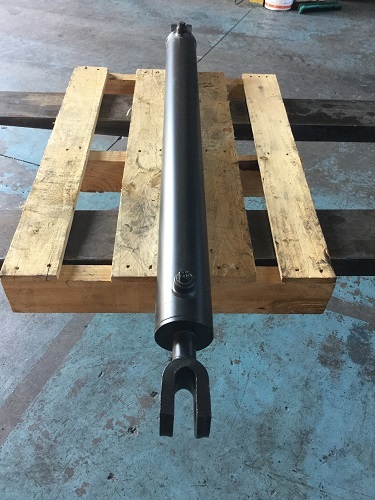

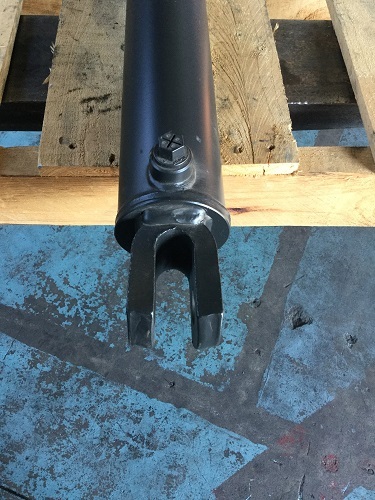

In StockSIDE TIPPER BODY CYLINDER, Agram –
80mm Bore x 35mm Rod x 914mm Stroke
MAKE: Jost
TYPE: Side Tipper Body Cylinder
BORE DIAMETER: 80mm Internal / 90mm External
ROD DIAMETER: 35mm
STROKE: 914mm
PIN TO PIN MEASUREMENT: 1225mm Closed / 2138mm Open
PORT: 3/4"- 16 UNF
(NET-STC080X35X914)
| SKU | NET-STC080X35X914 |
| Brand | Jost Australia |
| Shipping Weight | 35.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.200m |
| Shipping Length | 1.350m |
| Shipping Cubic | 0.135000000m3 |
| Unit Of Measure | ea |
