Turntable Ball Bearing Slewing Rings KLK 650 L Series - 650mm Max Diameter

TURNTABLE – Ball Bearing Slewing Rings KLK 650 L Series



TYPE: Ball Bearing Turntable KLK 650 L

APPLICATION: L-series = for farm carts and trailers with a speed up to 30 km/h (18m.p.h)

MAX DIAMETER:  650mm

HEIGHT:  45mm

Part Number:  KLK 650 L



Other Information:

Slewing rings are supplied undrilled and primed in black for corrosion protection.

The measurements are subject to the standard tolerances.

Fitting and maintenance instructions attached.





FURTHER INFORMATION

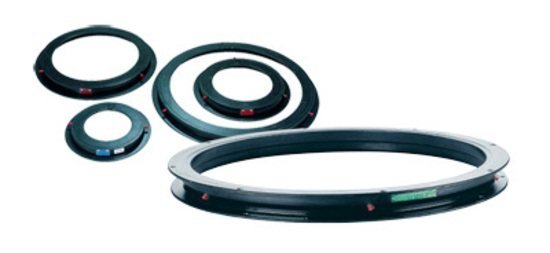

Our range of Ball bearing turntables consists of the following:

• SO series = for drawbar trailers with speeds up to 105km/h (65m.p.h) ie; Dog trailers.
• L-series = for farm carts and trailers with a speed up to 30 km/h (18m.p.h)
• N-series = for heavy farm carts and light truck trailers with a speed above 30 km/h (18 mph)



The kits and sizes we have available in our store are:

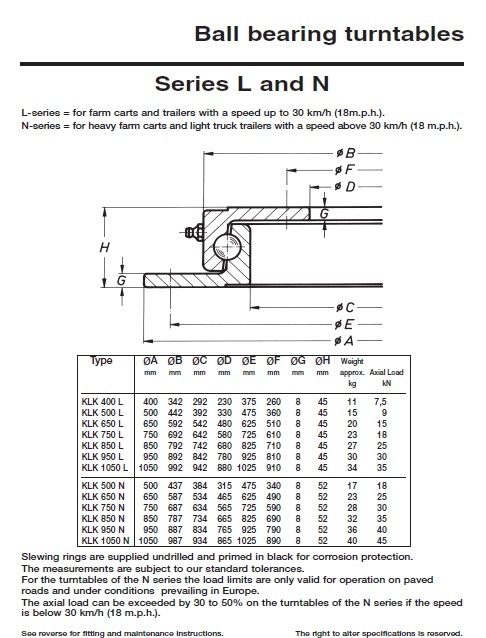

Type	ØA	ØB	ØC	ØD	ØE	ØF	ØG	ØH	Ød	Weight approx.	Axial Load
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg	kN
SO1000-24	987	1000	871	844	952	966	10	90	0	72	120
SO1100-24	1095	1108	979	952	1060	1074	10	90	18	82	160





Type	ØA	ØB	ØC	ØD	ØE	ØF	ØG	ØH	Weight approx.	Axial Load
	mm	mm	mm	mm	mm	mm	mm	mm	kg	kN
KLK 400 L	400	342	292	230	375	260	8	45	11	7,5
KLK 500 L	500	4420	392	330	475	360	8	45	15	9
KLK 650 L	650	592	542	480	625	510	8	45	20	15
KLK 750 L	750	692	642	580	725	610	8	45	23	18
KLK 850 L	850	792	742	680	825	710	8	45	27	25
KLK 950 L	950	892	842	780	925	810	8	45	30	30
KLK 1050 L	1050	992	942	880	1025	910	8	45	34	35
KLK 500 N	500	437	384	315	475	340	8	52	17	18
KLK 650 N	650	587	534	465	625	490	8	52	23	25
KLK 750 N	750	687	634	565	725	590	8	52	28	30
KLK 850 N	850	787	734	665	825	690	8	52	32	35
KLK 950 N	950	887	834	765	925	790	8	52	36	40
KLK 1050 N	1050	987	934	865	1025	890	8	52	40	45
