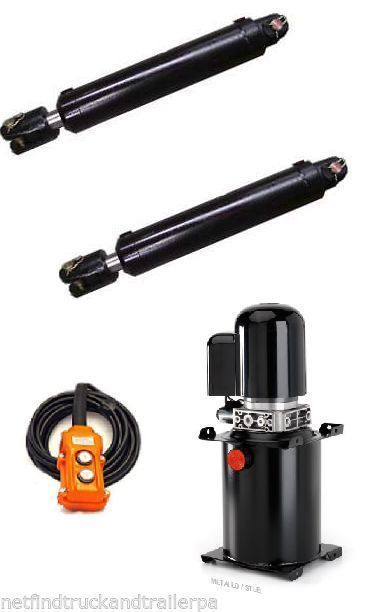

Kit 2 x Hydraulic Cylinder Agram 3"x 24" Stroke with 1 x 12Volt Powerpack DA8L
More infoMake 4 interest-free payments of $515.64 fortnightly and receive your order now.
In StockPair of Agrams comes with Double Acting 12V Powerpack
Item A x 2: AGRAM – Hydraulic Ram, Cylinder (Agricultural)
MODEL: TAG 3024D
DETAILS: 3” Bore, 920mm Long, Double Acting Cylinder
BORE DIAMETER: 3” (76.2mm)
STROKE: 24” (609.60mm)
PIN TO PIN MEASUREMENT: Closed-920.75mm / Open-1530.35mm
PORT (UNO): 3/4"
CLEVIS PIN: 1”
Item B x 1: Hydraulic Powerpack – Complete System - 12 Volt - Double Acting - 8 Litre Tank (Incl Pendant Control)
Make: PPKCS
Model: PPKCS12VDA08
Voltage: 12V / 1800 w
Reservoir: 8Lt Steel
Pendant: Double acting pendant control
Dimensions: Refer to images
Power packs are designed for tipping + ramp applications.
Range includes cetop valves, adaptors and pendant controls.
Our Range consists of:
| AGRAM 1.5" BORE | ||||||||
| Part # | Bore Dia in (mm) | Stroke | Pin to Pin | Port (UNO) | Maximum Pressure / Capacity | Pins | ||
| (IN) | (mm) | Closed | Open | |||||
| TAG 1502D | 1.5" (38.1) | 2 | 50.8 | 292.1 | 342.9 | 9/16" | 3500psi 2.3Tonne @ 3000psi | 9/16" |
| TAG 1504D | 4 | 101.6 | 342.9 | 444.5 | ||||
| TAG 1506D | 6 | 152.4 | 393.7 | 546.1 | ||||
| TAG 1508D | 8 | 203.2 | 444.5 | 647.7 | ||||
| TAG 1510D | 10 | 254 | 495.3 | 749.3 | ||||
| TAG 1512D | 12 | 304.8 | 546.1 | 850.9 | ||||
| TAG 1514D | 14 | 355.6 | 596.9 | 952.5 | ||||
| TAG 1516D | 16 | 406.4 | 647.7 | 1054.1 | ||||
| TAG 1518D | 18 | 457.2 | 698.5 | 1155.7 | ||||
| TAG 1520D | 20 | 508 | 749.3 | 1257.3 | ||||
| TAG 1524D | 24 | 609.6 | 850.9 | 1460.5 | ||||
| TAG 1530D | 30 | 762 | 1003.3 | 1765.3 | ||||
| TAG 1536D | 36 | 914.4 | 1155.7 | 2070.1 | ||||
| TAG 1548D | 48 | 1219.2 | 1460.5 | 2679.7 | ||||
| AGRAM 2.0" BORE | ||||||||
| Part # | Bore Dia in (mm) | Stroke | Pin to Pin | Port (UNO) | Maximum Pressure / Capacity | Pins | ||
| (IN) | (mm) | Closed | Open | |||||
| TAG 2002D | 2.0" (50.8) | 2 | 50.8 | 361.95 | 412.75 | 9/16" | 3500psi 4.2Tonne @ 3000psi | 1" |
| TAG 2004D | 4 | 101.6 | 412.75 | 514.35 | ||||
| TAG 2006D | 6 | 152.4 | 463.55 | 615.95 | ||||
| TAG 2008D | 8 | 203.2 | 514.35 | 717.55 | ||||
| TAG 2010D | 10 | 254 | 565.15 | 819.15 | ||||
| TAG 2012D | 12 | 304.8 | 615.95 | 920.75 | ||||
| TAG 2014D | 14 | 355.6 | 666.75 | 1022.35 | ||||
| TAG 2016D | 16 | 406.4 | 717.55 | 1123.95 | ||||
| TAG 2018D | 18 | 457.2 | 768.35 | 1225.55 | ||||
| TAG 2020D | 20 | 508 | 819.15 | 1327.15 | ||||
| TAG 2022D | 22 | 558.8 | 869.95 | 1428.75 | ||||
| TAG 2024D | 24 | 609.6 | 920.75 | 1530.35 | ||||
| TAG 2026D | 26 | 660.4 | 971.55 | 1631.95 | ||||
| TAG 2028D | 28 | 711.2 | 1022.35 | 1733.55 | ||||
| TAG 2030D | 30 | 762 | 1073.15 | 1835.15 | ||||
| TAG 2036D | 36 | 914.4 | 1225.55 | 2139.95 | ||||
| TAG 2042D | 42 | 1066.8 | 1377.95 | 2444.75 | ||||
| TAG 2048D | 48 | 1219.2 | 1530.35 | 2749.55 | ||||
| TAG 2054D | 54 | 1371.6 | 1682.75 | 3054.35 | ||||
| AGRAM 2.5" BORE | ||||||||
| Part # | Bore Dia in (mm) | Stroke | Pin to Pin | Port (UNO) | Maximum Pressure / Capacity | Pins | ||
| (IN) | (mm) | Closed | Open | |||||
| TAG 2504D | 2.5" (63.5) | 4 | 101.6 | 412.75 | 514.35 | 3/4" | 3500psi 6.6Tonne @ 3000psi | 1" |
| TAG 2506D | 6 | 152.4 | 463.55 | 615.95 | ||||
| TAG 2508D | 8 | 203.2 | 514.35 | 717.55 | ||||
| TAG 2510D | 10 | 254 | 565.15 | 819.15 | ||||
| TAG 2512D | 12 | 304.8 | 615.95 | 920.75 | ||||
| TAG 2514D | 14 | 355.6 | 666.75 | 1022.35 | ||||
| TAG 2516D | 16 | 406.4 | 717.55 | 1123.95 | ||||
| TAG 2518D | 18 | 457.2 | 768.35 | 1225.55 | ||||
| TAG 2520D | 20 | 508 | 819.15 | 1327.15 | ||||
| TAG 2522D | 22 | 558.8 | 869.95 | 1428.75 | ||||
| TAG 2524D | 24 | 609.6 | 920.75 | 1530.35 | ||||
| TAG 2526D | 26 | 660.4 | 971.55 | 1631.95 | ||||
| TAG 2528D | 28 | 711.2 | 1022.35 | 1733.55 | ||||
| TAG 2530D | 30 | 762 | 1073.15 | 1835.15 | ||||
| TAG 2536D | 36 | 914.4 | 1225.55 | 2139.95 | ||||
| TAG 2542D | 42 | 1066.8 | 1377.95 | 2444.75 | ||||
| TAG 2548D | 48 | 1219.2 | 1530.35 | 2749.55 | ||||
| AGRAM 3.0" BORE | ||||||||
| Part # | Bore Dia in (mm) | Stroke | Pin to Pin | Port (UNO) | Maximum Pressure / Capacity | Pins | ||
| (IN) | (mm) | Closed | Open | |||||
| TAG 3004D | 3.0" (76.2) | 4 | 101.6 | 412.75 | 514.35 | 3/4" | 3500psi 9.5Tonne @ 3000psi | 1" |
| TAG 3006D | 6 | 152.4 | 463.55 | 615.95 | ||||
| TAG 3008D | 8 | 203.2 | 514.35 | 717.55 | ||||
| TAG 3010D | 10 | 254 | 565.15 | 819.15 | ||||
| TAG 3012D | 12 | 304.8 | 615.95 | 920.75 | ||||
| TAG 3014D | 14 | 355.6 | 666.75 | 1022.35 | ||||
| TAG 3016D | 16 | 406.4 | 717.55 | 1123.95 | ||||
| TAG 3018D | 18 | 457.2 | 768.35 | 1225.55 | ||||
| TAG 3020D | 20 | 508 | 819.15 | 1327.15 | ||||
| TAG 3022D | 22 | 558.8 | 869.95 | 1428.75 | ||||
| TAG 3024D | 24 | 609.6 | 920.75 | 1530.35 | ||||
| TAG 3026D | 26 | 660.4 | 971.55 | 1631.95 | ||||
| TAG 3028D | 28 | 711.2 | 1022.35 | 1733.55 | ||||
| TAG 3030D | 30 | 762 | 1073.15 | 1835.15 | ||||
| TAG 3036D | 36 | 914.4 | 1225.55 | 2139.95 | ||||
| TAG 3042D | 42 | 1066.8 | 1377.95 | 2444.75 | ||||
| TAG 3048D | 48 | 1219.2 | 1530.35 | 2749.55 | ||||
| AGRAM 3.5" BORE | ||||||||
| Part # | Bore Dia in (mm) | Stroke | Pin to Pin | Port (UNO) | Maximum Pressure / Capacity | Pins | ||
| (IN) | (mm) | Closed | Open | |||||
| TAG 3506D | 3.5" (88.9) | 6 | 152.4 | 463.55 | 615.95 | 3/4" | 3500psi 12.8Tonne @ 3000psi | 1" |
| TAG 3508D | 8 | 203.2 | 514.35 | 717.55 | ||||
| TAG 3510D | 10 | 254 | 565.15 | 819.15 | ||||
| TAG 3512D | 12 | 304.8 | 615.95 | 920.75 | ||||
| TAG 3514D | 14 | 355.6 | 666.75 | 1022.35 | ||||
| TAG 3516D | 16 | 406.4 | 717.55 | 1123.95 | ||||
| TAG 3518D | 18 | 457.2 | 768.35 | 1225.55 | ||||
| TAG 3520D | 20 | 508 | 819.15 | 1327.15 | ||||
| TAG 3524D | 24 | 609.6 | 920.75 | 1530.35 | ||||
| TAG 3530D | 30 | 762 | 1073.15 | 1835.15 | ||||
| TAG 3536D | 36 | 914.4 | 1225.55 | 2139.95 | ||||
| TAG 3542D | 42 | 1066.8 | 1377.95 | 2444.75 | ||||
| TAG 3548D | 48 | 1219.2 | 1530.35 | 2749.55 | ||||
| AGRAM 4.0" BORE | ||||||||
| Part # | Bore Dia in (mm) | Stroke | Pin to Pin | Port (UNO) | Maximum Pressure / Capacity | Pins | ||
| (IN) | (mm) | Closed | Open | |||||
| TAG 4006D | 4" (101.6) | 4 | 101.6 | 412.75 | 514.35 | 3/4" | 3500psi 16.5Tonne @ 3000psi | 1" |
| TAG 4006D | 6 | 152.4 | 463.55 | 615.95 | ||||
| TAG 4008D | 8 | 203.2 | 514.35 | 717.55 | ||||
| TAG 4012D | 12 | 304.8 | 615.95 | 920.75 | ||||
| TAG 4016D | 16 | 406.4 | 717.55 | 1123.95 | ||||
| TAG 4018D | 18 | 457.2 | 768.35 | 1225.55 | ||||
| TAG 4020D | 20 | 508 | 819.15 | 1327.15 | ||||
| TAG 4024D | 24 | 609.6 | 920.75 | 1530.35 | ||||
| TAG 4030D | 30 | 762 | 1073.15 | 1835.15 | ||||
| TAG 4036D | 36 | 914.4 | 1225.55 | 2139.95 | ||||
| TAG 4042D | 42 | 1066.8 | 1377.95 | 2444.75 | ||||
| TAG 4048D | 48 | 1219.2 | 1530.35 | 2749.55 | ||||
| AGRAM 5.0" BORE | ||||||||
| Part # | Bore Dia in (mm) | Stroke | Pin to Pin | Port (UNO) | Maximum Pressure / Capacity | Pins | ||
| (IN) | (mm) | Closed | Open | |||||
| TAG 5008D | 5" (127) | 8 | 203.2 | 514.35 | 717.55 | 3/4" | 3500psi 16.5Tonne @ 3000psi | 1" |
| TAG 5012D | 12 | 304.8 | 615.95 | 920.75 | ||||
| TAG 5016D | 16 | 406.4 | 717.55 | 1123.95 | ||||
| TAG 5018D | 18 | 457.2 | 768.35 | 1225.55 | ||||
| TAG 5020D | 20 | 508 | 819.15 | 1327.15 | ||||
| TAG 5024D | 24 | 609.6 | 920.75 | 1530.35 | ||||
| TAG 5030D | 30 | 762 | 1073.15 | 1835.15 | ||||
| TAG 5036D | 36 | 914.4 | 1225.55 | 2139.95 | ||||
| TAG 5048D | 48 | 1219.2 | 1530.35 | 2749.55 | ||||
(KIT-AG3-24-X2_PPDA12V8L)
| SKU | KIT-AG3-24-X2_PPDA12V8L |
| Brand | Unbranded/Generic |
| Shipping Weight | 60.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 1.150m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.345000000m3 |
| Unit Of Measure | ea |
