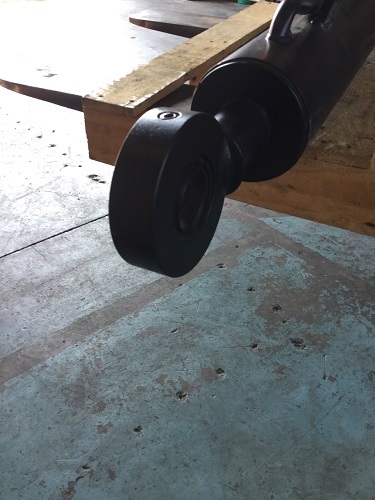

Side Tipper Body Cylinder, Side Tipper Agram, 125mm Bore x 60mm Rod x 955mm Stroke

$950.00

More info.

Make 4 interest-free payments of $237.50 fortnightly and receive your order now.

In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pick-up from store

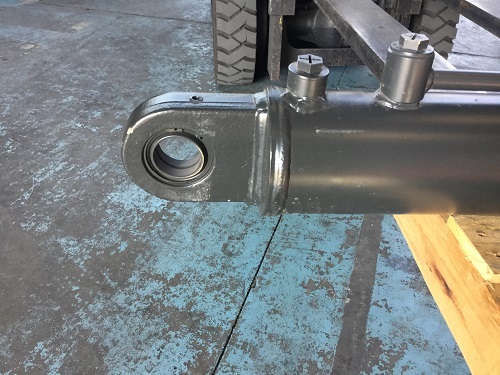

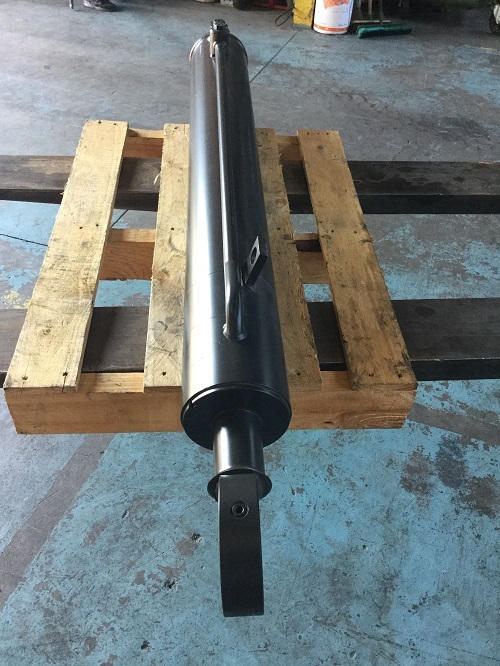

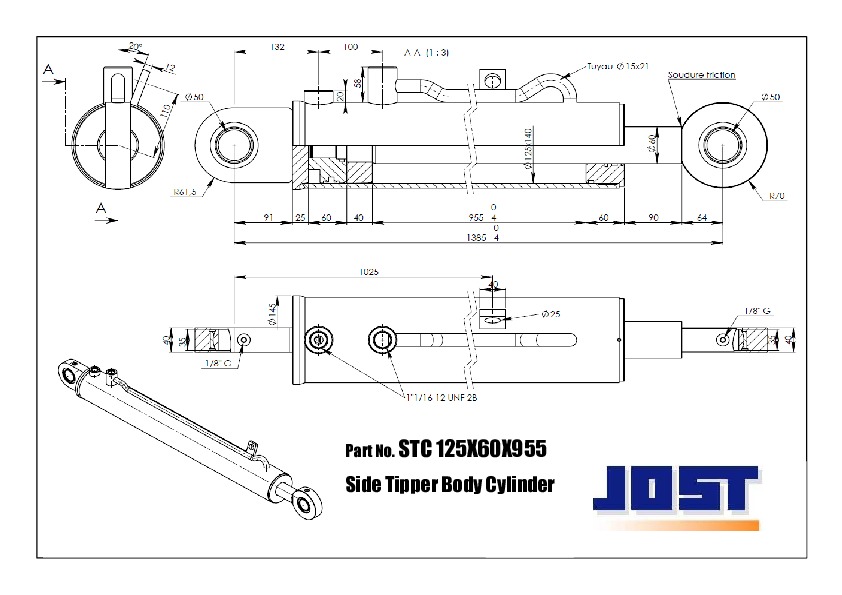

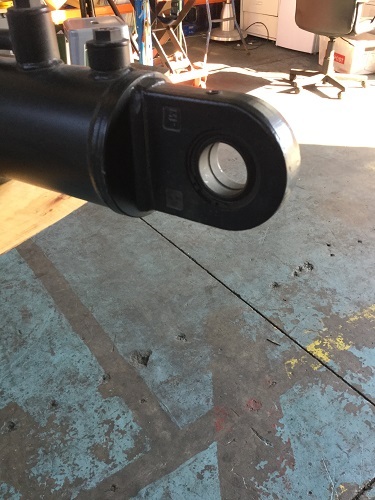

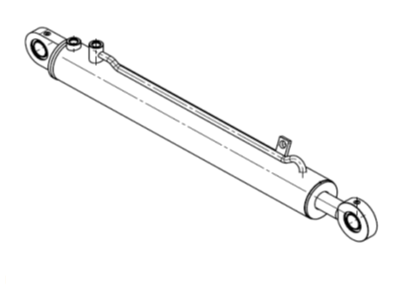

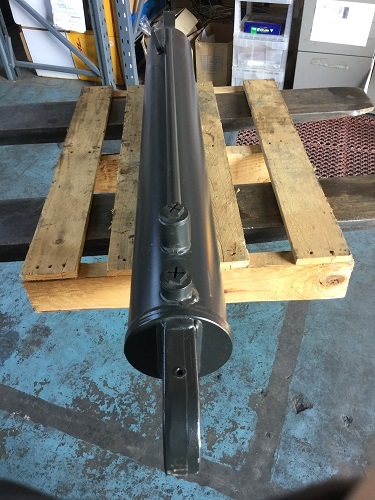

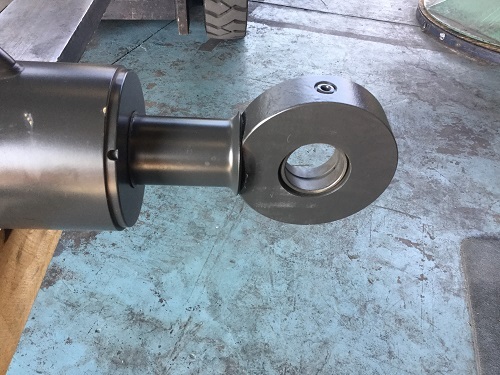

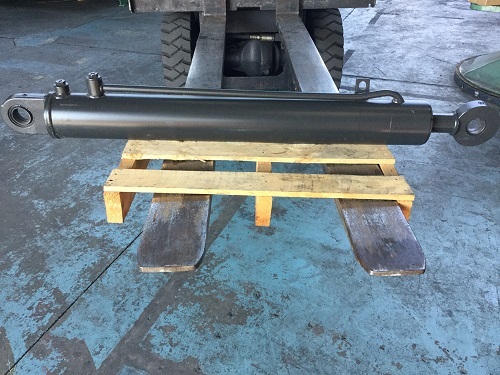

SIDE TIPPER BODY CYLINDER, Agram –

125mm Bore x 60mm Rod x 955mm Stroke

MAKE: Jost

TYPE: Side Tipper Body Cylinder

BORE DIAMETER:  125mm Internal / 145mm External

ROD DIAMETER:  60mm

STROKE:  955mm

PIN TO PIN MEASUREMENT:  1385mm Closed / 2340mm Open

PORT:  1 1/16”- 12UNF

(NET-STC125X60X955)

SKU NET-STC125X60X955
Brand Jost Australia
Shipping Weight 84.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 1.600m
Shipping Cubic 0.144000000m3
Unit Of Measure ea
