Side Tipper Body Cylinder, Side Tipper Agram, 80mm Bore x 35mm Rod x 914mm Stroke

$601.60

More info.

Make 4 interest-free payments of $150.40 fortnightly and receive your order now.

In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pick-up from store

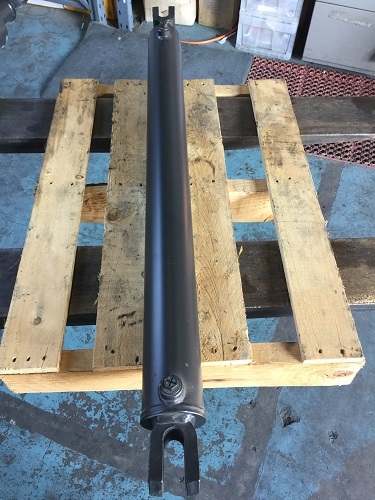

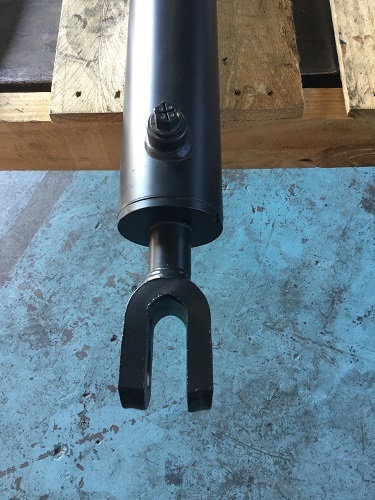

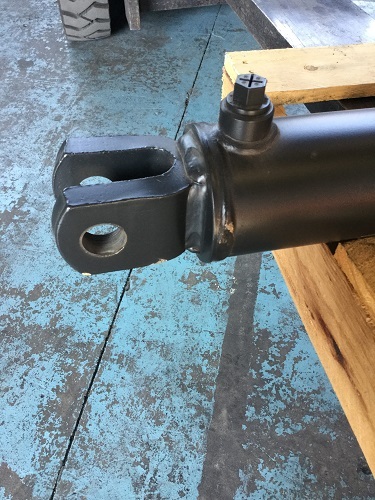

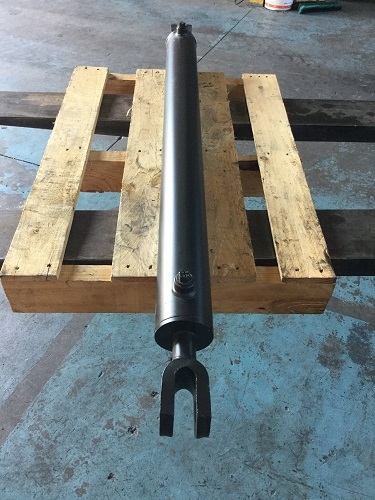

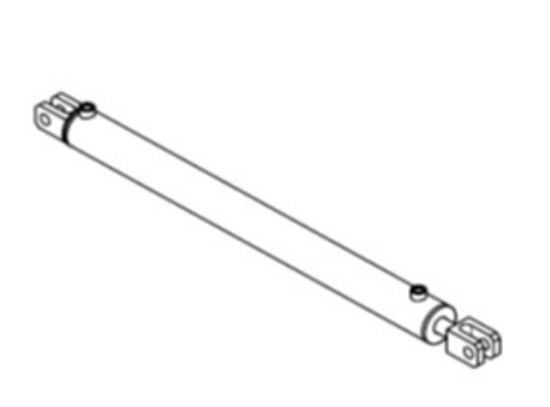

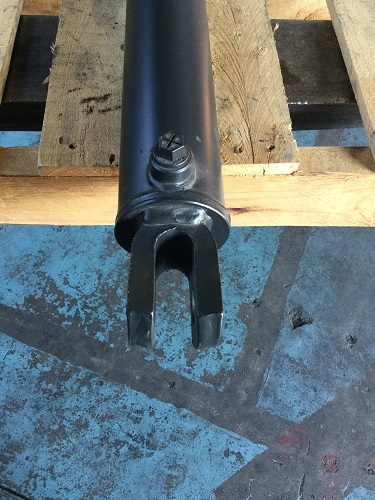

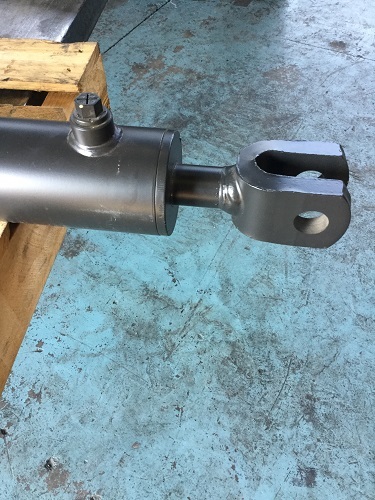

SIDE TIPPER BODY CYLINDER, Agram –

80mm Bore x 35mm Rod x 914mm Stroke

MAKE: Jost

TYPE: Side Tipper Body Cylinder

BORE DIAMETER:  80mm Internal / 90mm External

ROD DIAMETER:  35mm

STROKE:  914mm

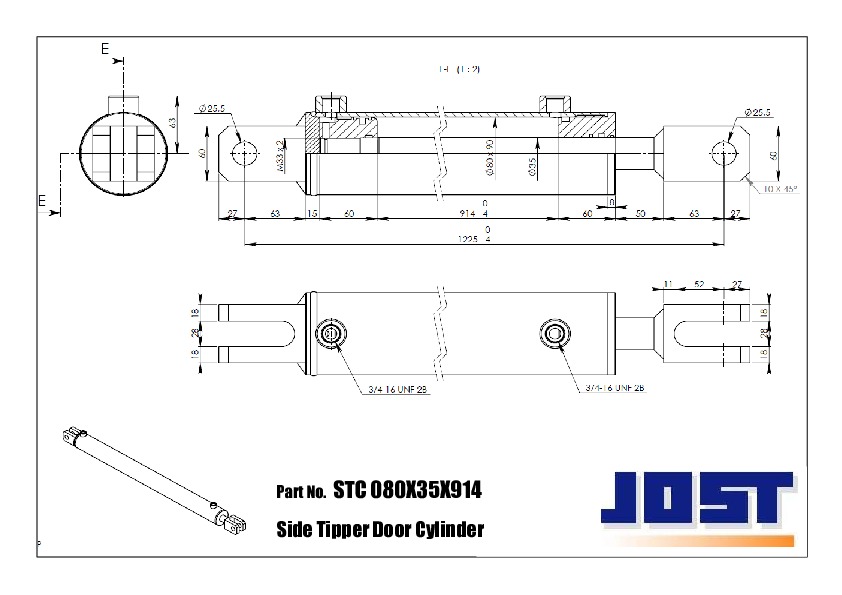

PIN TO PIN MEASUREMENT:  1225mm Closed / 2138mm Open

PORT:  3/4"- 16 UNF

(JOT-STC080X35X914)

SKU JOT-STC080X35X914
Brand Jost Australia
Shipping Weight 35.0000kg
Shipping Width 0.500m
Shipping Height 0.200m
Shipping Length 1.350m
Shipping Cubic 0.135000000m3
Unit Of Measure ea
