Slewing Ring Series KDL Ballrace Low Profile 750mm 120KN RATING

$2,717.72

More info.

Make 4 interest-free payments of $679.43 fortnightly and receive your order now.

In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pick-up from store

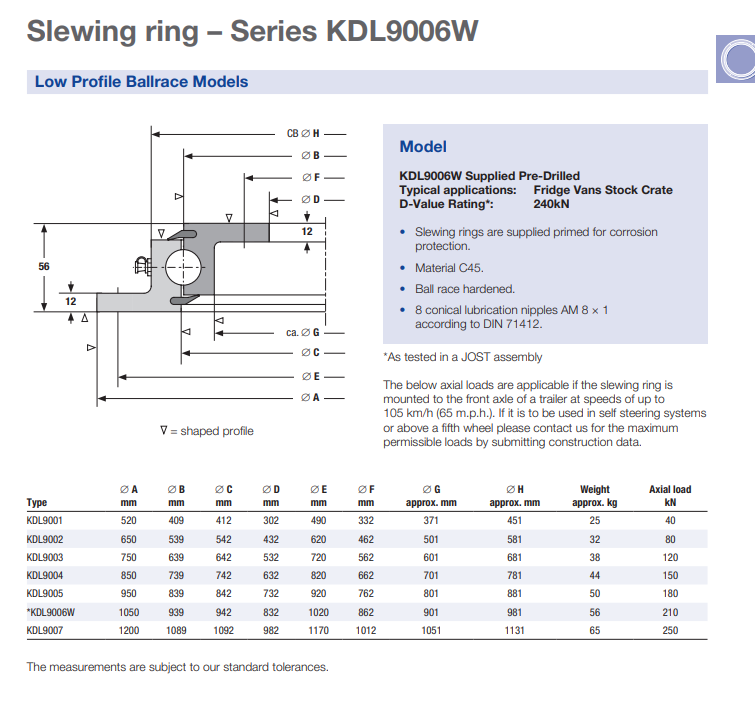

Slewing Ring - Low Profile Ballrace Model KDL



Description: Low profile ballrace models.

Model: KDL9003

Axial Load: 120kN

Applications: General Freight, Fridge Vans, Stock Crate, Tippers

KDL9006W Supplied Pre-Drilled

Typical applications: Fridge Vans Stock Crate

D-Value Rating*: 240kN

• Slewing rings are supplied primed for corrosion protection.

• Material C45.

• Ball race hardened.

• 8 conical lubrication nipples AM 8 × 1 according to DIN 71412.



The below axial loads are applicable if the slewing ring is mounted to the front axle of a trailer at speeds of up to 105 km/h (65 m.p.h.). If it is to be used in self steering systems or above a fifth wheel please contact us for the maximum permissible loads by submitting construction data.

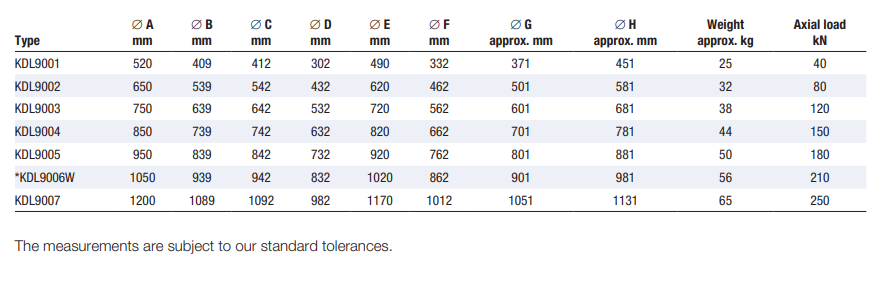

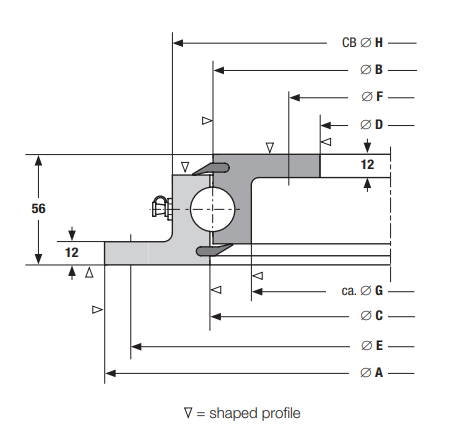

Type

A

Mm

B

mm

C

mm

D

mm

E mm

F

mm

G

approx. mm

H

approx. mm

Weight

approx. kg

Axial load

kN

KDL9001

520

409

412

302

490

332

371

451

25

40

KDL9002

650

539

542

432

620

462

501

581

32

80

KDL9003

750

639

642

532

720

562

601

681

38

120

KDL9004

850

739

742

632

820

662

701

781

44

150

KDL9005

950

839

842

732

920

762

801

881

50

180

*KDL9006W

1050

939

942

832

1020

862

901

981

56

210

KDL9007

1200

1089

1092

982

1170

1012

1051

1131

65

250

The measurements are subject to our standard tolerance



(JOT-KDL9003)

SKU JOT-KDL9003
Brand Jost
Shipping Weight 38.0000kg
Shipping Width 0.750m
Shipping Height 0.500m
Shipping Length 0.750m
Shipping Cubic 0.281250000m3
Unit Of Measure ea
