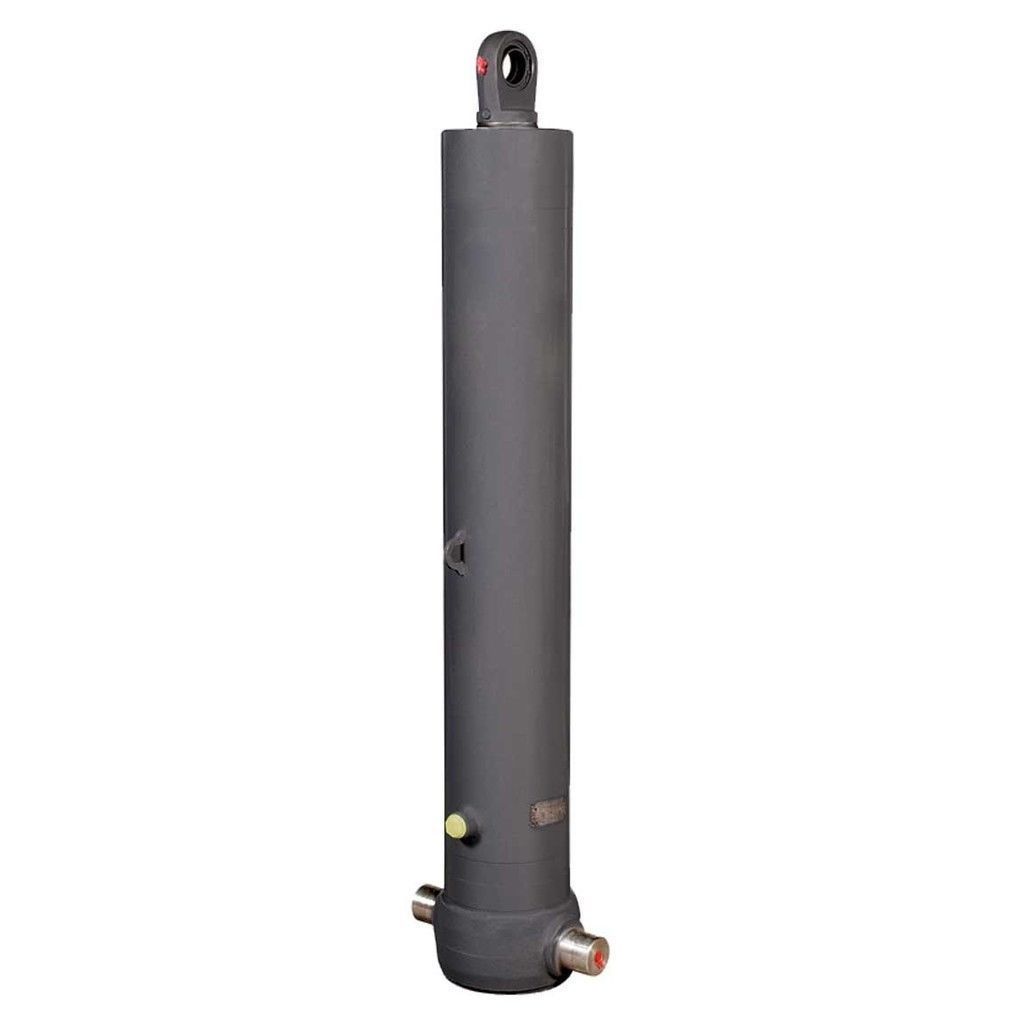

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 175-4-7120C
More infoMake 4 interest-free payments of $1,232.00 fortnightly and receive your order now.
In StockTruck Trailer TIPPING HOIST – Well Mount
MAKE: Hidromas
TYPE: Well Mount “Underbody”
MODEL: 175-4-7120C
DETAILS: 175mm diameter of first stage, 4 Stages, 7120mm Stroke
PIVOT CENTRE FOR 48°: 8850mm
TIPPING CAPACITY: 45T
BARREL DIMENSION: 197mm
Dimensions as per attached photo/drawing are:
A. Closed Height including 30mm pullout: 2340mm
B. Centre of bottom trunnion pin to centre of top clevis pin: 2130mm
C. Centre of bottom trunnion pin to bottom of hoist: 77.5mm
D. Centre to centre of feet bolt holes: 343mm
E. Maximum width of foot print: 380mm
PORT BSP: 1”
SWEPT VOLUME: 127 Litres
FOOT HEIGHT: 1 pair x 125mm
CLEVIS: 2
(JOT-175-4-7120C)
| SKU | JOT-175-4-7120C |
| Brand | Hidromas |
| Shipping Weight | 345.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 1.100m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.330000000m3 |
| Unit Of Measure | ea |
