Tow bar to suit Pintle Hook Coupling to 4,500kg Truck Trailer Tow Bar
Make 4 interest-free payments of $480.74 fortnightly and receive your order now.
In StockTowbar to suit Pintle Hook BT620-4.5T

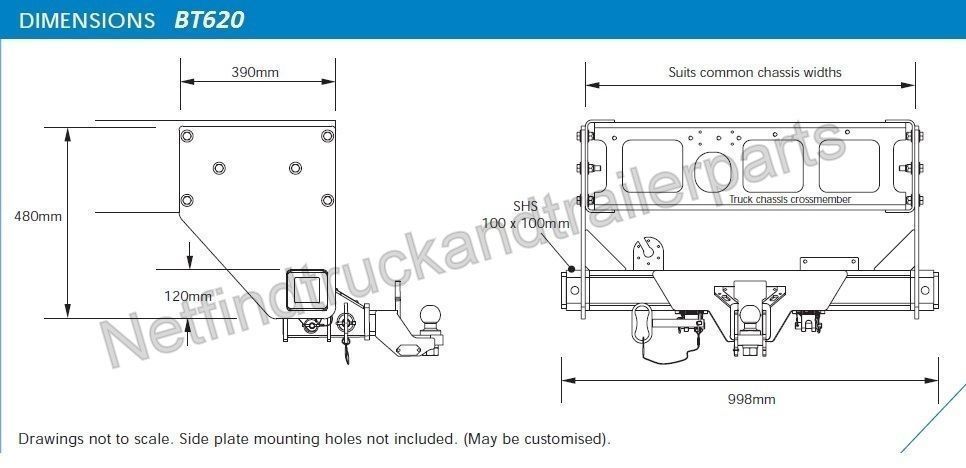

MODEL: BT620B
DETAILS: Towbar for Pintle Hook to suit Light/Medium duty trucks up to 4,500kg
APPLICATION: Light/Medium Rigid Truck
COUPLING: Pintle Hook
MAXIMUM ATM: 4,500kg standard
UPGRADEABLE: no but 7,000kg is available as standard. (BT750)
CHASSIS MOUNT: Outside
INCLUDED: Towbar, mounting instructions, compliance plate once complete. Pintle hook sold seperately.
**Please read description carefully to be fully aware of what is included in this item, Contact us if you require further attachments as seen in images**
INSTALLATION: Drilling and bolting required for truck chassis and sideplates. Welding required for fixing crossmember, gussets and accessory components.
Comprehensive installation Instructions are provided to assist with ADR62 assurance and VSB6 compliance. Some applications require customised sideplates - consult with Bartlett if unsure.
** May not be suitable for some tipper applications.
Method of attachment to chassis can be varied to suit various mounting heights. Consult with Bartlett for customisation.
Our range consists of the following:
TOW BAR - 50mm Ball & Pintle Hooks | | | ||
Part #: | To suit coupling: | Application | Max ATM (kg): | Chassis Mount |
TBR350001-3.5T | 50mm Ball | Light/Medium Truck | 3500 | OUTSIDE |
TBR1250H0001-7T | Light Pintle hook + Receiver ball and mount for 50mm ball | Light/Medium Truck | 7000kg Pintle / 3500kg Ball | OUTSIDE |
TBR1200H0001-7T | Light Pintle Hooks | Small/Medium Truck | 7000 | OUTSIDE |
TBR1300H001-15T | Medium Pintle Hooks | Medium/Heavy Truck | 15000 | OUTSIDE |
TBR1400H0001-21.5T | Heavy Duty Pintle Hook - 6 Bolt (PH300) | Heavy Rigid Trucks | 21500 | OUTSIDE |
TBR1400H0002-30T | | 30000 | OUTSIDE | |
TOW BAR - Bartlett Ball | | | | |
Part #: | To suit coupling: | Application | Max ATM (kg): | Chassis Mount |
TBR1200B0001-7T | Bartlett 95 mm Ball | Medium Truck | 7000 | OUTSIDE |
TBR1300B0001-13T | Bartlett 127mm Ball | Medium/Heavy Truck | 13000 | OUTSIDE |
TBR1400B0001-21.5T | Bartlett 127mm Ball | Heavy Rigid Trucks | 21500 | OUTSIDE |
TBR1400B0002-30T | | 30000 | OUTSIDE | |
TBR1700B0001-21.5T | Barttlett 127mm Ball | Heavy Truck | 21500 | INSIDE |
TBR1700B0010-30T | | 30000 | INSIDE | |
TOW BAR - Automatic Pin | | | | |
Part #: | To suit coupling: | Application | Max ATM (kg): | Chassis Mount |
TBR1300A0001-17T | Automatic Pin and some Pintle Hooks | Medium/Heavy Truck | 17000 | OUTSIDE |
TBR1400A0001-21.5T | Automatic Pin | Heavy Rigid Trucks | 21500 | OUTSIDE |
TBR1400A0002-30T | | 30000 | OUTSIDE | |
TBR1700A0001-21.5T | Automatic Pin and some Pintle Hooks | Heavy Truck | 21500 | INSIDE |
TBR-1700A0010-30T | | 30000 | INSIDE | |
MULTI COUPLING | | | | |
Part #: | To suit coupling: | Application | Max ATM (kg): | Chassis Mount |
TBR620001-4.5T | 62mm Square Solid Mount with 50mm Ball / Light Pintle Hook / 95mm Barlett Ball | Light/Medium Truck | 4500 | OUTSIDE |
TBR7500001-7T | 75mm Square Solid Mount with 50mm Ball / Light Pintle Hook / 95mm Barlett Ball | Light/Medium Truck | 7000 | OUTSIDE |
(BAR-BT620_0303_620-PHM.2)
SKU | BAR-BT620_0303_620-PHM.2 |
Brand | Bartlett |
Shipping Weight | 100.0000kg |
Shipping Width | 0.600m |
Shipping Height | 1.100m |
Shipping Length | 0.600m |
Shipping Cubic | 0.396000000m3 |
Unit Of Measure | ea |
