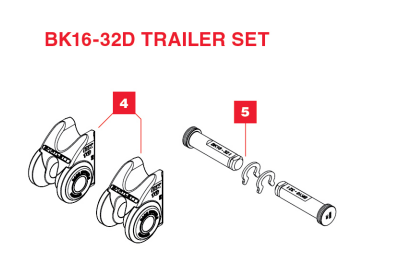

16mm BK Trailer Side Trailer Safety Chain Attachment Kits BK16-32D

$286.00

More info.

Make 4 interest-free payments of $71.50 fortnightly and receive your order now.

In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pick-up from store

BK Trailer Safety Chain Attachment Kits 16mm System Trailer Side

MAKE:  Bartlett Equipment
MODEL:  BK16-32D Towbar Set
DETAILS:  Trailer Side Kit Towbar Attachment Kit 16mm System
SUITS CHAIN SIZE:  16mm
MAX ATM:  32,000kg
CRN: 49481 (ADR62/02)
MOUNTING:  Trailer Side
Part Number:  BK16-32D

*Chains not included but are sold separately.

Bartlett Safety Chain Systems High tensile protection against the consequences of accidental trailer separation.
Advantages:

  • Instant compliance with Australian Design Rule 62 (ADR62).
  • High tensile steel castings - Weldable, MIG or low hydrogen arc.
  • Compact - minimise jack-knife restriction.
  • Cost effective - rapid installation.
  • Chain joiners such as Hammerloks® not required.

Australian Design Rule 62 (ADR62) requires:

  • Two Grade T 800 Safety Chains held by attachments on every rigid drawbar trailer, (PIG or TAG).
  • Two attachments to receive chains on every towbar - no exclusions.
  • Attachments are specified because Grade T 800 chain is not weldable.



Towbar Attachment Kits - Truck Side





Part #:

Description

Application:

Reference:

Capacity:

BK10-10T

10mm System

Truck Kit-Towbar Attach Set

BK10-10T

ATM to 10T

BK13-21T

13mm System

Truck Kit-Towbar Attach Set

BK13-21T

ATM to 21T

BK16-32T

16mm System

Truck Kit-Towbar Attach Set

BK16-32T

ATM to 32T

BK20-50T

20mm System

Truck Kit-Towbar Attach Set

BK20-50T

ATM to 50T

Towbar Attachment Kits - Trailer Side





Part #:

Description

Application:

Reference:

Capacity:

BK10-10D

10mm System

Trailer Kit-Towbar Attach Set

BK10-10D

ATM to 10T

BK13-21D

13mm System

Trailer Kit-Towbar Attach Set

BK13-21D

ATM to 21T

BK16-32D

16mm System

Trailer Kit-Towbar Attach Set

BK16-32D

ATM to 32T

BK20-50D

19mm System

Trailer Kit-Towbar Attach Set

BK20-50D

ATM to 50T











Towbar Chain Sets







Part #:

Description

Application:

Mass

Length/piece:

BK10-L22

10mm System

Safery Chain Set, 22 Links

3kgs

630mm

BK10-L28

10mm System

Safety Chain Set, 28 Links

3.8kgs

860mm

BK13-L14

13mm System

Safety Chain Set, 14 Links

4.15kgs

570mm

BK13-L20

13mm System

Safety Chain Set, 20 Links

5.9kgs

860mm

BK16-L14

16mm System

Safety Chain Set, 14 Links

8kgs

705mm

BK16-L16

16mm System

Safety Chain Set, 16 Links

9.1kgs

800mm

BK20-L11

20mm System

Safey Chain Set , 11 Links

11.6kgs

700mm

BK20-L13

20mm System

Safety Chain Set, 13 Links

13.7kgs

820mm

(NET-BAR-BK16-32D)

SKU NET-BAR-BK16-32D
Brand Bartlett
Shipping Weight 5.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
Unit Of Measure ea
