30mm Medium Tailgate Latch & Hinge System Kit Body Hardware

Truck Trailer Tailgate Latch & Hinge System



TYPE: Tailgate Latch & Hinge System - Light Kit 30mm

APPLICATION: Used in the top right hand corner of a tipping body to hold the door closed and locked.

Part Number: HTGC30 & HTGH30

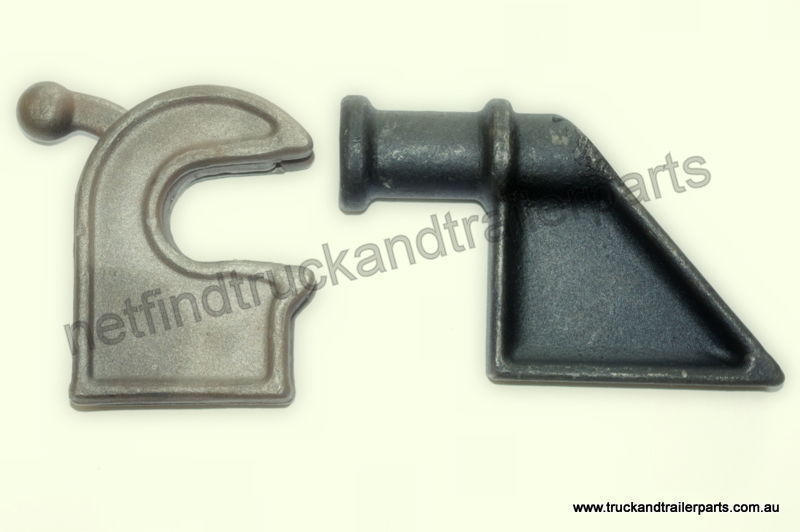

The Kit is made up of the following components:

1 x 30mm Latch/Catch (sometimes known as horses head)

1 x 30mm Raised Hinge



FURTHER INFORMATION

Our Body Hardware and Kits have been designed to suit a broad range or truck and trailer applications, including semi-trailers, low loaders, tippers and body truck.

Our range of Body Hardware consists of the following:

· Side Swing Tailgate Kits

· Rear Pivot Kits

· Top Door Hinge & Release Kits

· Double Action Bottom Hinge Kit

. Tailgate Latch & Hinge System

. Drop Side Crowned Hinges

. Drop Side Flat Hinges

. Corner Post Catches



The kits and sizes we have available in our store are:

SIDE SWING TAILGATE KITS

· BOD011A – 27mm Kit

· BOD004A – 35mm Kit

· BOD012 – 50mm Kit

REAR PIVOT KITS

· BOD013 – 27mm Bush Type

· BK005A – 38mm Bush Type

· BK005S – 38mm Shoe Type

· BK005A – 51mm Bush Type

TOP DOOR HINGE & RELEASE KIT

· BOD014-40mm Right Hand Side Handle Kit

DOUBLE ACTION BOTTOM HINGE KIT

· BOD007

TAILGATE LATCH & HINGE SYSTEM

· 02185/02184-20mm Kit

· 02236/02234-24mm Kit

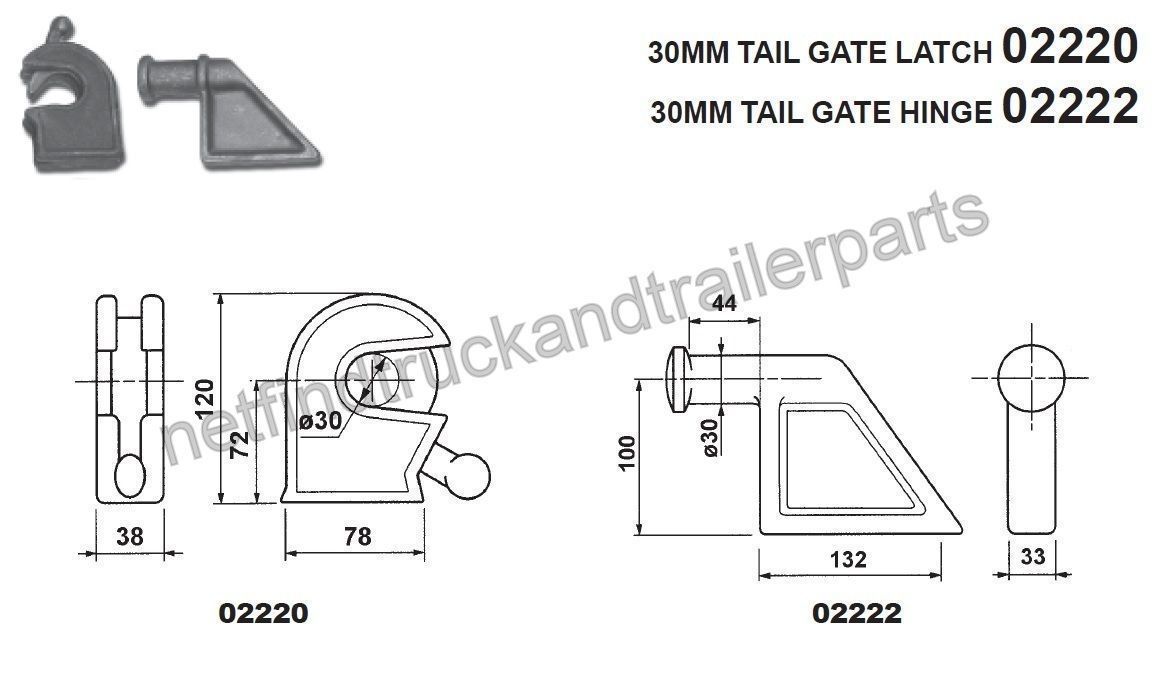

· 02220/02222-30mm Kit

· 02224/02226-40mm Kit

DROP SIDE CROWNED HINGES

· 03312/03306-95mm Hinge and 11mm Pin

· 03327/03328-70mm Hinge and 16mm Pin

· 03330/03328-124mm Hinge and 16mm Pin

DROP SIDE FLAT HINGES

· 03332/03328-140mm Pin and 16mm Pin

· 03339/03328-190mm Pin and 16mm Pin

CORNER POST CATCHES

· 02108DX/02108SX/02112-12mm Catch RH and LH and eye

· 02114DX/02114SX/02120-14mm Catch RH and LH and eye

· 02130DX/02130SX/02128-16mm Catch RH and LH and eye
