Truck Trailer Body Hardware Tailgate Tipper Side Bent Bar and Pin Kit only 27mm

$265.94

More info.

Make 4 interest-free payments of $66.48 fortnightly and receive your order now.

In Stock


Calculate Shipping



Free pick-up from store - $0.00
Free pick-up from store

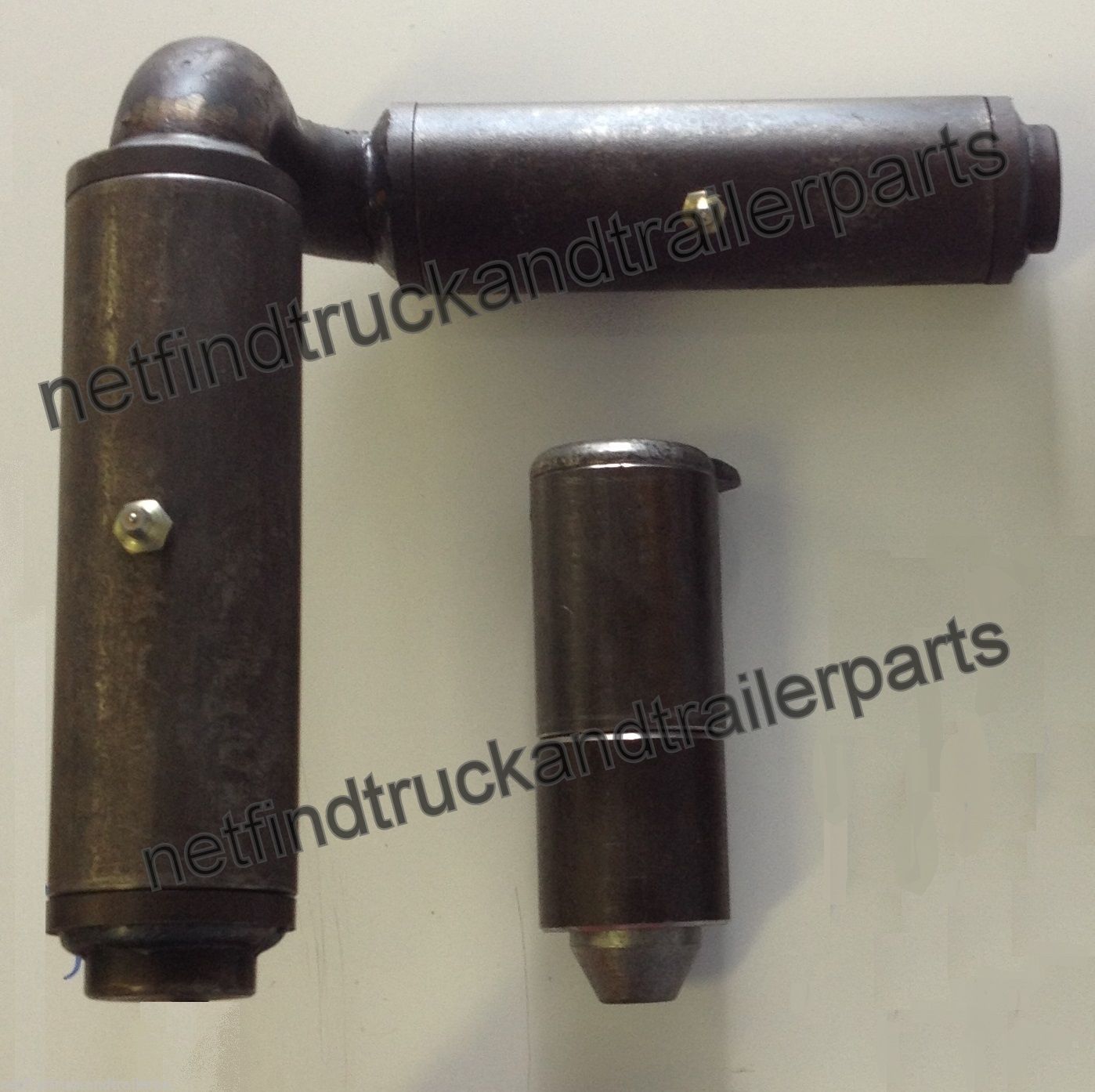

Truck Trailer Body Hardware Tailgate Tipper Side Bent Bar and Pin Kit only 27mm

TYPE: 27mm Rear Tailgate Elbow and Pin Kit 27mm

APPLICATION: convert single acting tailgate truck body door into two (2) way tailgates. It is best used for Steel Tipper Bodies.

Part Number:  BK011

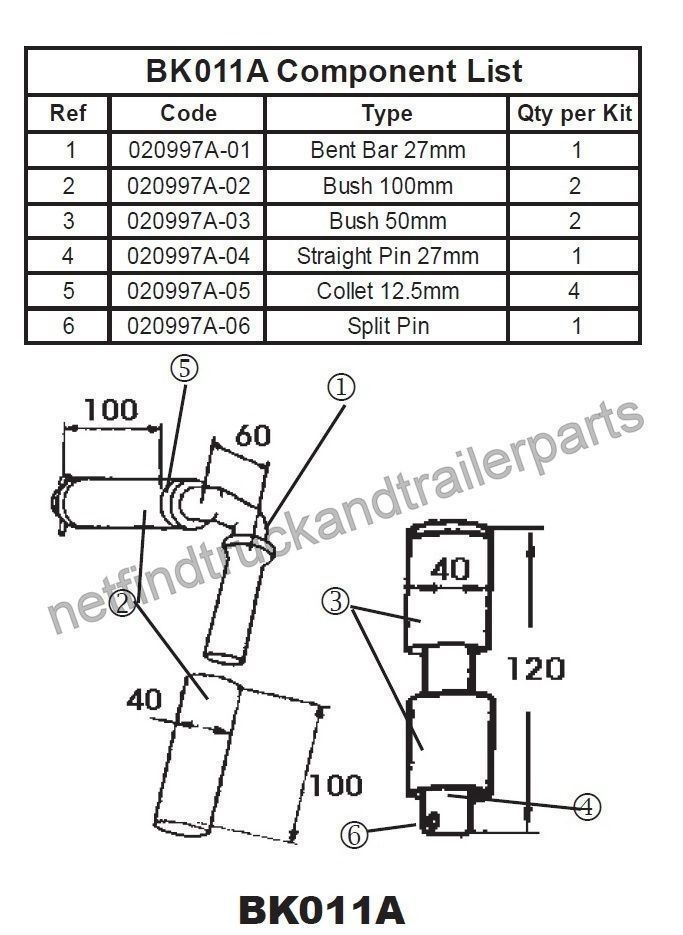

The Kit is made up of the following components:

Ref 1:  1 x Bent Bar 1.06" (27mm) thick 90deg Swing Elbow

Ref 2:  2 x Long Bush 3.9" (100mm) long x 1.06" (27mm) I/D x 1.57" (40mm) O/D

Ref 3:  2 x Short Bush 2" (50mm) long x 1.06" (27mm) I/D x 1.57" (40mm) O/D

Ref 4:  1 x Straight Pin 4.5” (120mm) long x 1.0mm" (27mm) O/D

Ref 5:  4 x Collet/Collar 1.06" (27mm) I/D x 3/8" (10mm) wide

Ref 6:  1 x Split Pin



FURTHER INFORMATION

Our Body Hardware and Kits have been designed to suit a broad range or truck and trailer applications, including semi-trailers, low loaders, tippers and body truck.

Our range of Body Hardware consists of the following:

· Side Swing Tailgate Kits

· Rear Pivot Kits

· Top Door Hinge & Release Kits

· Double Action Bottom Hinge Kit

. Tailgate Latch & Hinge System

. Drop Side Crowned Hinges

. Drop Side Flat Hinges

. Corner Post Catches

The kits and sizes we have available in our store are:

SIDE SWING TAILGATE KITS

· BOD011A – 27mm Kit

· BOD004A – 35mm Kit

· BOD012 – 50mm Kit

REAR PIVOT KITS

· BOD013 – 27mm Bush Type

· BK005A – 38mm Bush Type

· BK005S – 38mm Shoe Type

· BK005A – 51mm Bush Type

TOP DOOR HINGE & RELEASE KIT

· BOD014-40mm Right Hand Side Handle Kit

DOUBLE ACTION BOTTOM HINGE KIT

· BOD007

TAILGATE LATCH & HINGE SYSTEM

· 02185/02184-20mm Kit

· 02236/02234-24mm Kit

· 02220/02222-30mm Kit

· 02224/02226-40mm Kit

DROP SIDE CROWNED HINGES

· 03312/03306-95mm Hinge and 11mm Pin

· 03327/03328-70mm Hinge and 16mm Pin

· 03330/03328-124mm Hinge and 16mm Pin

DROP SIDE FLAT HINGES

· 03332/03328-140mm Pin and 16mm Pin

· 03339/03328-190mm Pin and 16mm Pin

CORNER POST CATCHES

· 02108DX/02108SX/02112-12mm Catch RH and LH and eye

· 02114DX/02114SX/02120-14mm Catch RH and LH and eye

· 02130DX/02130SX/02128-16mm Catch RH and LH and eye









(THS-BK011A)

SKU THS-BK011A
Brand Unbranded/Generic
Shipping Weight 12.0000kg
Shipping Width 0.250m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.022500000m3
Unit Of Measure ea
