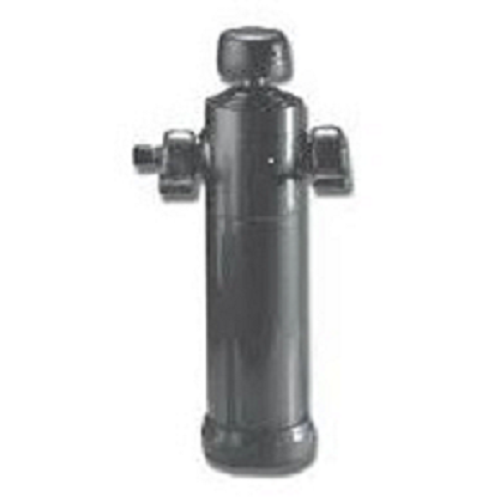

UNDERBODY CYLINDER for Ute / Small Trailer

TYPE: Under Body Cylinder

MODEL: HK3094S

DETAILS: 5 Stages, 1490mm Stroke

PIVOT CENTRE FOR 48°: 1220mm

CAPACITY: 7t

OIL VOLUME: 7.5 Litres

WEIGHT: 35kgs

Warranty: 12 month manufacturers subject to approval

Premium Italian-manufactured cylinders:
High Quality finish on the outer diameter of all tubes
Anti-friction surface, enabling sliding of steel against steel
Saline nitriding treatment resistant to wear and stress
Hoist kit includes brackets and inlet fitting

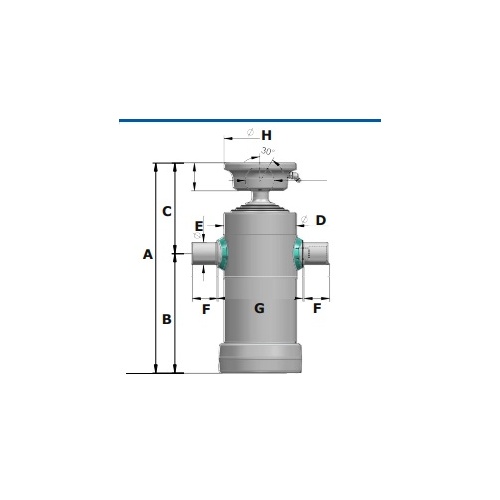

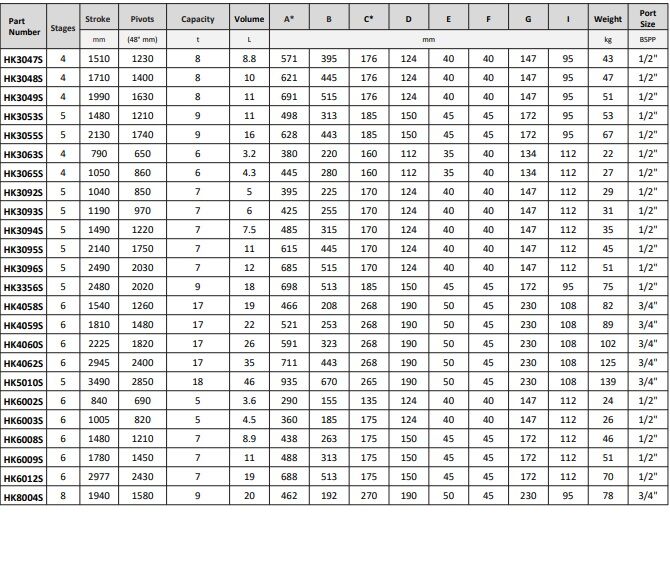

PART NUMBER	STAGES	STROKE	PIVOT CENTRE	CAPACITY	VOLUME	DIMENSIONS (mm)								WEIGHT	PORT SIZE
PART NUMBER	STAGES	MM	(48° mm)	t	L	A*	B	C*	D	E	F	G	I	KG	BSPP
HK3047S	4	1510	1230	8	8.8	571	395	176	124	40	40	147	95	43	1/2"
HK3048S	4	1710	1400	8	10	621	445	176	124	40	40	147	95	47	1/2"
HK3049S	4	1990	1630	8	11.0	691	515	176	124	40	40	147	95	51	1/2"
HK3053S	5	1480	1210	9	11	498	313	185	150	45	45	172	95	53	1/2"
HK3055S	5	2130	1740	9	16.0	628	443	185	150	45	45	172	95	67	1/2"
HK3063S	4	790	650	6	3.2	380	220	160	112	35	40	134	112	22	1/2"
HK3065S	4	1050	860	6	4.3	445	280	160	112	35	40	134	112	27	1/2"
HK3092S	5	1040	850	7	5	395	225	170	124	40	40	147	112	29	1/2"
HK3093S	5	1190	970	7	6	425	255	170	124	40	40	147	112	31	1/2"
HK3094S	5	1490	1220	7	7.5	485	315	170	124	40	40	147	112	35	1/2"
HK3095S	5	2140	1750	7	11.0	615	445	170	124	40	40	147	112	45	1/2"
HK3096S	5	2490	2030	7	12.0	685	515	170	124	40	40	147	112	51.0	1/2"
HK3356S	5	2480	2020	9	18	698	513	185	150	45	45	172	95	75	1/2"
HK4058S	6	1540	1260	17	19.0	466	208	268	190	50	45	230	108	82	3/4"
HK4059S	6	1810	1480	17	22.0	521	253	268	190	50	45	230	108	89	3/4"
HK4060S	6	2225	1820	17	26.0	591	323	268	190	50	45	230	108	102	3/4"
HK4062S	6	2945	2400	17	35.0	711	443	268	190	50	45	230	108	125	3/4"
HK5010S	5	3490	2850	18	46.0	935	670	265	190	50	45	230	108	139	3/4"
HK6002S	6	840	690	5	3.6	290	155	135	124	40	40	147	112	24	1/2"
HK6003S	6	1005	820	5	4.5	360	185	175	124	40	40	147	112	26	1/2"
HK6008S	6	1480	1210	7	8.9	438	263	175	150	45	45	172	112	46	1/2"
HK6009S	6	1780	1450	7	11.0	488	313	175	150	45	45	172	112	51	1/2"
HK6012S	6	2977	2430	7	19	688	513	175	150	45	45	172	112	70	1/2"
HK8004S	8	1940	1580	9	20.0	462	192	270	190	50	45	230	95	78	3/4"
*) Closed height measurement (A & C) including 20mm pull out

All specifications subject to change without notice. Netfind accepts no responsibility for any losses incurred from any such changes, including those that occur as a result of fabrication using dimensions shown.

A tipper body will not meet Australian Standard AS1418.8, or Occupational Health & Safety regulations without a Hoist Safety Valve, or similar safety device, fitted.

Hoist capacity relates to the body weight plus the payload. This value, calculated at the rated working pressure, is an approximate indication of tipping capacity, to be used as the first criteria for hoist selection. Actual tipping capacity can only be determined by the tipper designer/manufacturer, and must consider all geometry of the tipper body and operating conditions.

Rated working pressure 150 bar. Maximum working pressure 200 bar.

Never exceed maximum pressure. Never exceed maximum hoist load.
