Under body multi stage hydraulic cylinder & 12 Litre 12Volt powerpack suits trailers HK3065S

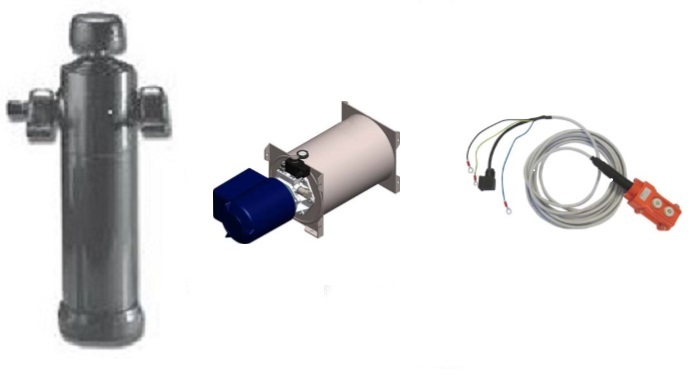

Under Body Multi Stage Hydraulic Cylinder suitable for trailers comes with Powerpack

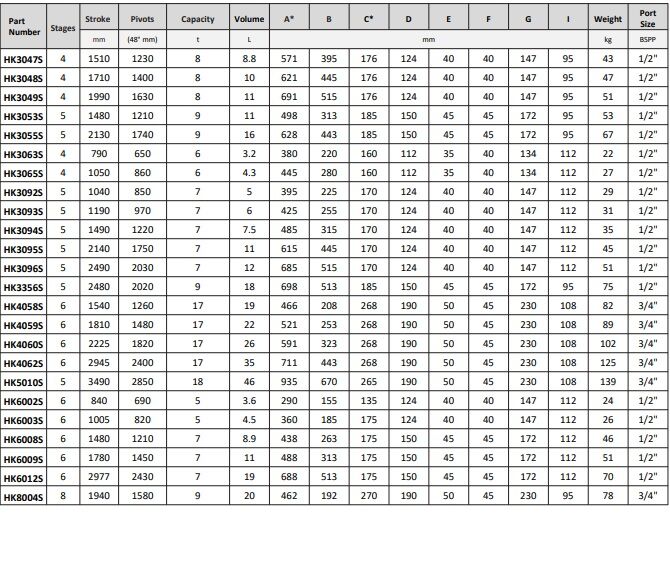

Item A x 1: UNDERBODY CYLINDER for Ute / Small Trailer

TYPE: Under Body Cylinder

MODEL: HK3065S

DETAILS:  4 Stages, 2060mm Stroke

PIVOT CENTRE FOR 48°:  860mm

CAPACITY:  6t

OIL VOLUME: 4.3 Litres

WEIGHT:  27kgs

· Premium "Italian" manufactured cylinders
· Stages machined from seamless hot rolled tubes
· Very large overlap – double bottom guides
· Higher max working pressure of 200 Bar
· Chromed piston rod as standard
· Pressure and double lip wiper seals in plyurethane
· High quality finish pn the OD of all tubes
· Swivel oil Inlet
· Weldable cup
· Port hole at 90degrees from the front directly out of the trunnion
· Warranty: 12 month manufacturers subject to approval

Premium Italian-manufactured cylinders:
High Quality finish on the outer diameter of all tubes
Anti-friction surface, enabling sliding of steel against steel
Saline nitriding treatment resistant to wear and stress
Hoist kit includes brackets and inlet fitting

Item B x 1: 12V Single Acting Hydraulic Power pack

MAKE: Hydroven
TYPE: Single Acting Power pack
MODEL: HCPPSA12V12LT
MOTOR: 12V / 1800W S3 DC Motor
MAX PRESSURE: 300 Bar
PENDANT: Power up (raise) Manual down (lower) hand held pendant controller with 4m cable
RESERVOIR: 12LT Steel
DIMENSIONS: refer to image
MOUNTING: horizontal

· Premium "Italian" manufactured cylinders
· Available in 12v or 24v
· and also 8Lt or 12Lt tanks
· motor completed with thermocouple
· starting relay 200A
· plastic protection cover

Warranty:  12 month manufacturers subject to approval

All specifications subject to change without notice. Netfind accepts no responsibility for any losses incurred from any such changes, including those that occur as a result of fabrication using dimensions shown.

A tipper body will not meet Australian Standard AS1418.8, or Occupational Health & Safety regulations without a Hoist Safety Valve, or similar safety device, fitted.

Hoist capacity relates to the body weight plus the payload. This value, calculated at the rated working pressure, is an approximate indication of tipping capacity, to be used as the first criteria for hoist selection. Actual tipping capacity can only be determined by the tipper designer/manufacturer, and must consider all geometry of the tipper body and operating conditions.

Rated working pressure 150 bar. Maximum working pressure 200 bar.

Never exceed maximum pressure. Never exceed maximum hoist load.
