DNB4062S - Hydraulic Trailer Tipping Cylinder Trailer or Ute - 6 Stage, 2910mm Stroke, 190mm Diameter

UNDERBODY CYLINDER for Ute / Small Trailer



MAKE: Dinatale Bertelli

TYPE: Under Body Cylinder

MODEL: DNB4062S

DETAILS: 190mm Diameter, 6 Stages, 2910mm Stroke

PIVOT CENTRE FOR 50°:  3570mm

TIPPING CAPACITY:  Nom:  14 / Max:  24  @ 170 Bar

Closed Height including 20mm pullout: 713mm

WEIGHT:  125kgs

OIL VOLUME: 34.6 Litres



·         Premium “Italian” manufactured cylinders

·         Stages machined from seamless hot rolled tubes

·         Very large overlap – double bottom guides

·         Higher max working pressure of 200 Bar

·         Chromed piston rod as standard

·         Pressure and double lip wiper seals in plyurethane

·         High quality finish pn the OD of all tubes

·         Swivel oil Inlet

·         Weldable cup

·         Port hole at 90degrees from the front directly out of the trunnion



Warranty:  12 month manufacturers subject to approval



FURTHER INFORMATION

Truck and Trailer Parts stock and can source Hydraulic Cylinder / Tipping Hoists and seal kits for most applications. Our range of tipping hoists consists of the following:

· Suitable for Tipper Bodies, Dog Trailers, Semi Trailers, B Doubles

· Available in Well Mount (Underbody) and Front Mount

· Many different stroke sizes to ensure ideal tipping angle of 48 degrees

· Standard and Raised Trunion available

· Comes complete with feet and clevis

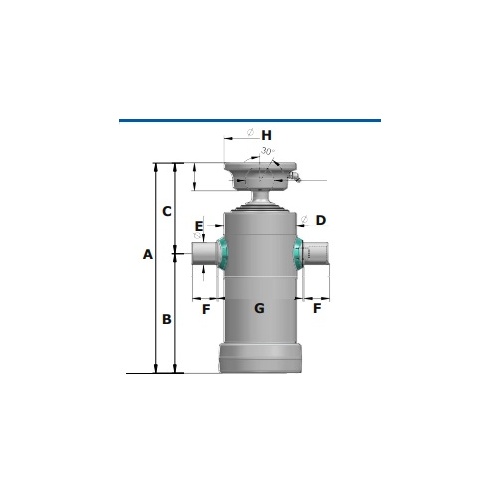

PART NUMBER	50 DEG PIVOT CENTRE	STAGES	TIPPING CAPACITY		STROKE	CLOSED HEIGHT*	OIL VOL	WEIGHT	DIMENSIONS (MM)
	MM		NOM	MAX.**	MM	(A) MM	LT	KG	B	C	E Ø	F Ø	G	H	I Ø
DNB3047S	1785	4	7	11.5	1510	572	8.7	43	395	177	124	40	40	150	95
DNB3048S	2025	4	7	11.5	1710	622	10	46	445	177	124	40	40	150	95
DNB3049S	2380	4	7	11.5	1990	692	11.5	51	515	177	124	40	40	150	95
DNB3052S	1490	5	9	15	1230	450	9	45	265	185	152	45	45	175	95
DNB3053S	1785	5	9	15	1480	500	11	53	315	185	152	45	45	175	95
DNB3055S	2550	5	9	15	2130	630	15.5	67	445	185	152	45	45	175	95
DNB3063S	950	4	5	8.5	790	380	3.2	21	220	160	112	35	40	135	112
DNB3065S	1260	4	5	8.5	1050	445	4.3	26	280	165	112	35	40	135	112
DNB3092S	1190	5	5	8.5	1040	395	5	29	225	170	124	40	40	150	112
DNB3093S	1425	5	5	8.5	1190	425	6	31	255	170	124	40	40	150	112
DNB3094S	1785	5	5	8.5	1490	485	7.5	35	315	170	124	40	40	150	112
DNB3095S	2550	5	5	8.5	2140	615	10.8	45	445	170	124	40	40	150	112
DNB3096S	2960	5	5	8.5	2490	685	12.4	50.5	515	170	124	40	40	150	112
DNB3356S	2975	5	9	15	2480	700	18	75	515	185	152	45	45	175	95
DNB4058S	1890	6	14	24	1540	478	18.5	82	210	268	190	50	45	230	107
DNB4060S	2675	6	14	24	2225	593	25.9	102	325	268	190	50	45	230	107
DNB4062S	3570	6	14	24	2910	713	34.6	125	445	268	190	50	45	230	107
DNB6002S	1010	6	4	6.5	840	315	3.6	23	155	160	124	40	40	150	112
DNB6003S	1190	6	4	6.5	1005	355	4.5	26	185	170	124	40	40	150	112
DNB6008S	1785	6	5	8.5	1480	440	8.9	46	265	175	152	45	45	175	112
DNB6009S	2140	6	5	8.5	1780	490	11.2	51	315	175	152	45	45	175	112
DNB6012S	3500	6	5	8.5	2977	690	19	71	515	175	152	45	45	175	112
DNB8004S	2300	8	7	11.5	1940	462	19.5	78	192	270	190	50	45	230	112
*closed height measurement includes 20mm pull out ** max tipping capacity calculated at maximum presure of 170bar
