Tipping Tipper Hoist "Front Mount" Hydraulic Cylinder 135-3-3195H

$3,171.00

More info.

Make 4 interest-free payments of $792.75 fortnightly and receive your order now.

In Stock


Calculate Shipping

Truck Trailer TIPPING HOIST – Front Mount



MAKE: Hidromas

TYPE: Front Mount

MODEL: 135-3-3195H

DETAILS: 135mm diameter of first stage, 3 Stages, 3195mm Stroke

PIVOT CENTRE FOR 48°: 3950mm

TIPPING CAPACITY: 24T

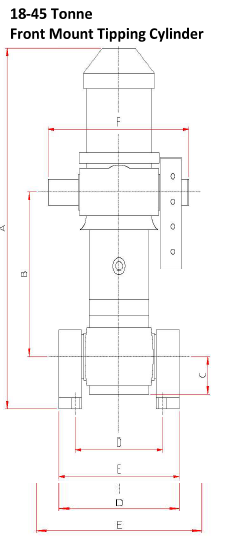

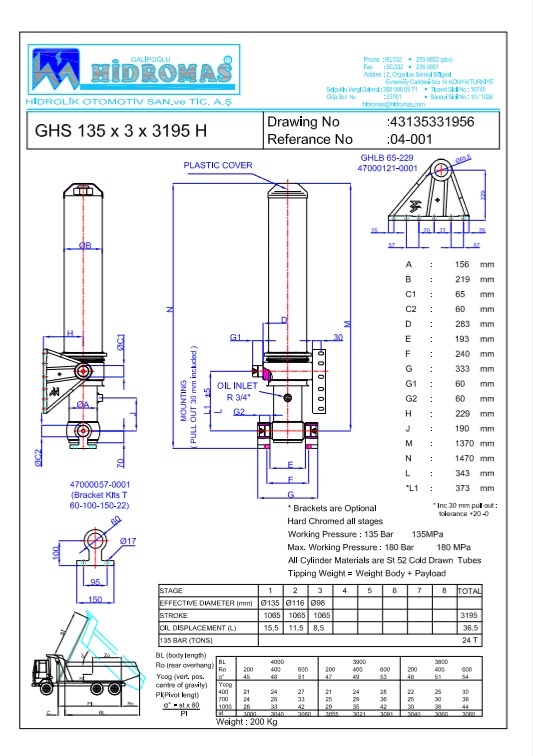

Dimensions as per attached photo/drawing are:

A. Closed Height including 30mm pullout: 1480mm

C. Centre of bottom trunnion pin to bottom of hoist: 343mm

D. Centre to centre of feet bolt holes: 240mm

E. Maximum width of foot print: 333mm

PORT BSP: ¾”

SWEPT VOLUME: 43 Litres

FOOT HEIGHT: 1 pair x 100mm

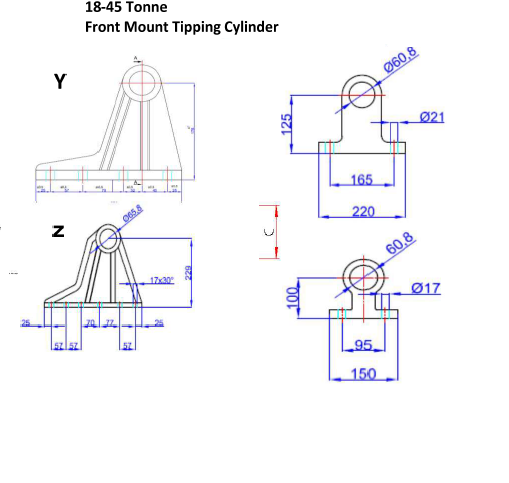

Lifting Brackets: Z





(JOT-135-3-3195H)

SKU JOT-135-3-3195H
Brand Hidromas
Shipping Weight 214.0000kg
Shipping Width 0.600m
Shipping Height 1.100m
Shipping Length 0.500m
Shipping Cubic 0.330000000m3
Unit Of Measure ea
