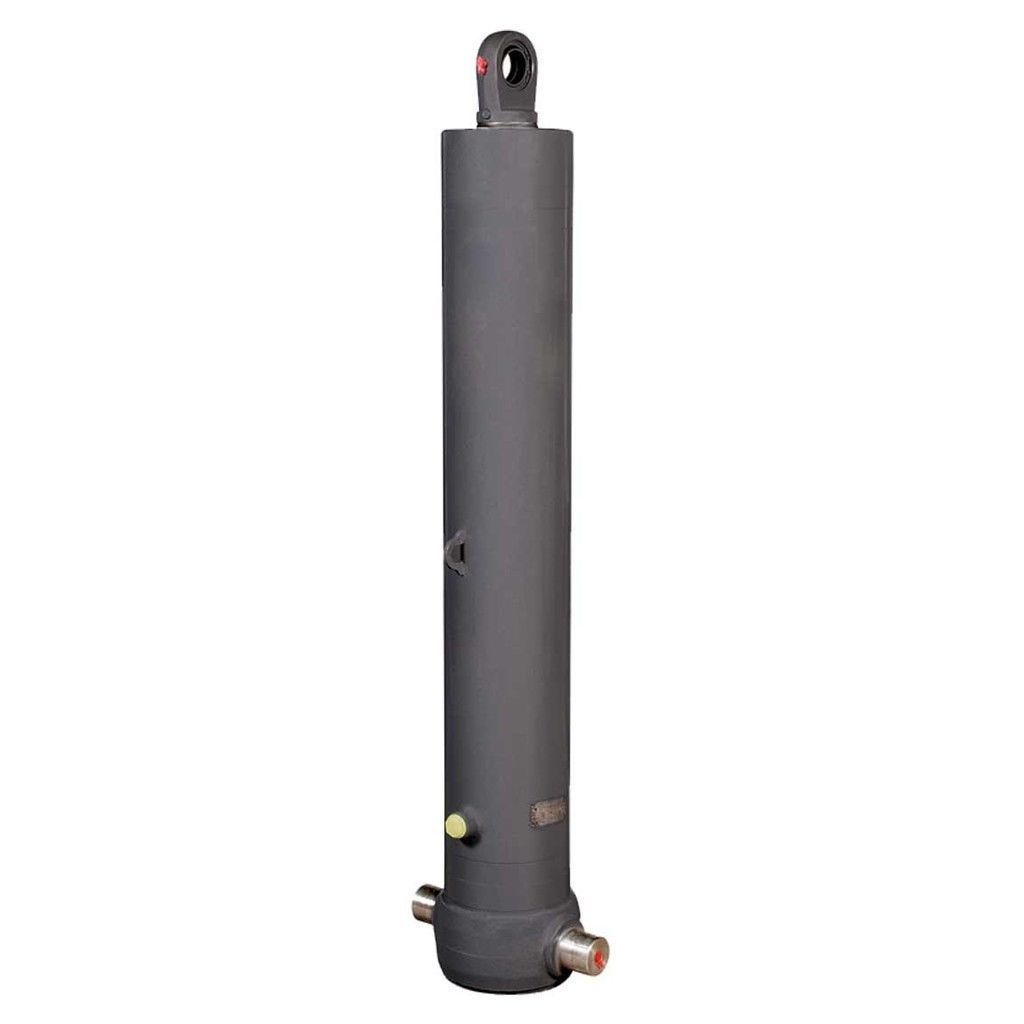

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 183-4-6280C

$4,440.00

More info.

Make 4 interest-free payments of $1,110.00 fortnightly and receive your order now.

In Stock


Calculate Shipping

Truck Trailer TIPPING HOIST – Well Mount



MAKE:  Hidromas

TYPE:  Well Mount “Underbody”

MODEL:  183-4-6280C

DETAILS:  183mm diameter of first stage, 4 Stages, 6280mm Stroke

PIVOT CENTRE FOR 48°:  7750mm

TIPPING CAPACITY:  50T

BARREL DIMENSION: 207mm

Dimensions as per attached photo/drawing are:

A.    Closed Height including 30mm pullout:  2128mm

B.    Centre of bottom trunnion pin to centre of top clevis pin:  1892mm

C.    Centre of bottom trunnion pin to bottom of hoist:  102.5mm

D.    Centre to centre of feet bolt holes:  343mm

E.    Maximum width of foot print:  395mm

PORT BSP:  1”

SWEPT VOLUME:  124 Litres

FOOT HEIGHT:  1 pair x 150mm

CLEVIS:  2



(JOT-183-4-6280C)

SKU JOT-183-4-6280C
Brand Hidromas
Shipping Weight 380.0000kg
Shipping Width 0.600m
Shipping Height 1.100m
Shipping Length 0.500m
Shipping Cubic 0.330000000m3
Unit Of Measure ea

Be The First To Review This Product!

Help other Netfind Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review


More From This Category


Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 197-5-7325C

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 197-5-7325C

$5,800.00

Make 4 interest-free payments of $1,450.00 fortnightly and receive your order now.

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 135-3-2610C

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 135-3-2610C

$2,050.00

Make 4 interest-free payments of $512.50 fortnightly and receive your order now.

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 135-3-3195C

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 135-3-3195C

$2,153.00

Make 4 interest-free payments of $538.25 fortnightly and receive your order now.

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 197-5-6425C

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 197-5-6425C

$4,990.00

Make 4 interest-free payments of $1,247.50 fortnightly and receive your order now.

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 135-4-3480C

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 135-4-3480C

$2,228.00

Make 4 interest-free payments of $557.00 fortnightly and receive your order now.

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 175-5-6425C

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 175-5-6425C

$4,682.00

Make 4 interest-free payments of $1,170.50 fortnightly and receive your order now.

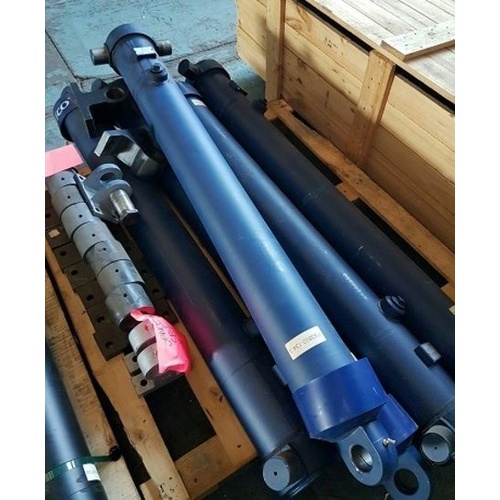

TIPPING HOIST Truck Trailer, Tipper Hoist – “Well Mount” Underbody FS3-134-3802 End of Line Stock
