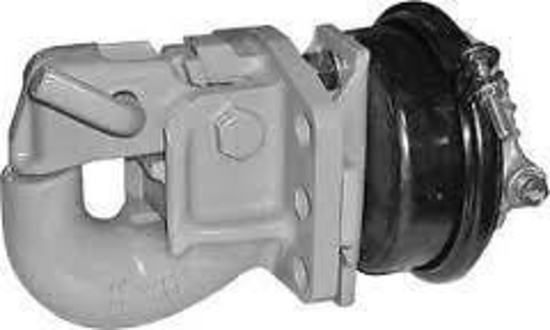

Tow Hitch Holland Pintle 45T 6 BOLT Truck Trailer PH310

Calculate Shipping

Free pick-up from store - $0.00
Free pick-up from store

50mm Pintle Hook 45Tonne Air Compensated tow hitch for Truck side.

6 BOLT HOLLAND -PH300 Series

Rigid mount pintle hook with an air cushioned

A rigid mount pintle hook designed for trailers, semitrailers, and doubles operations. Used for off-road and over-the-road applications, with an air cushioned snubber, designed to minimize the space between the pintle hook and drawbar on vehicles with air systems. This pintle hook is recommended for use in severe duty applications.

The air chamber is available with a variety of rod lengths to accomodate your specific mounting. The threaded plunger is also adjustable.

For off-road applications, reduce the maximum capacities by 25% and use with a swivel-mount drawbar.

18,000 lbs. (8164 kg) Vertical Load
72,000 lbs. (32658 kg) Gross Trailer Weight
Weight: 42 lbs. (10.1 kg)

SUITABLE FOR USE IN CONJUNCTION WITH THE BT1400H (21.5TN ) & BT1400H ( 30TN) CROSSMEMBER.

The item I am selling does not come with any crossmembers.

We are able to supply crossmembers to suit all makes and model, complete with compliance tags.

We can also supply the Ringfeder, Rockinger & V.Orlandi couplings, all types of pintle coupling, and ball type unit i.e bartlett.

(COT-PH310)

SKU	COT-PH310
Brand	Buyers
Shipping Weight	18.1000kg
Shipping Width	0.360m
Shipping Height	0.330m
Shipping Length	0.360m
Shipping Cubic	0.042768000m3
Unit Of Measure	ea
