Under body multi stage hydraulic cylinder & 12V 12L powerpack suits trailers 3048S
More infoMake 4 interest-free payments of $332.63 fortnightly and receive your order now.

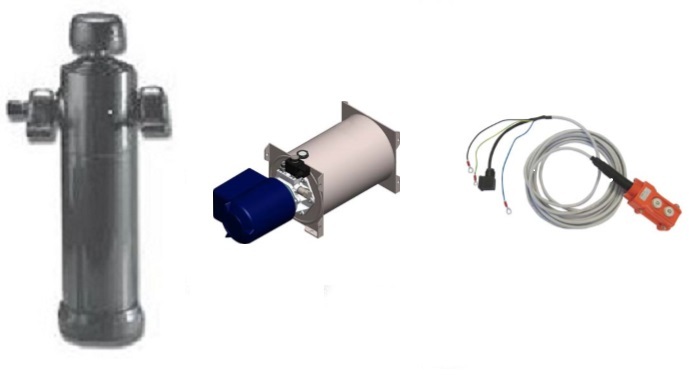

In StockUnder Body Multi Stage Hydraulic Cylinder suitable for trailers comes with Powerpack
Item A x 1: UNDERBODY CYLINDER for Ute / Small Trailer
TYPE: Under Body Cylinder
MODEL: HK3047S
DETAILS: 4 Stages, 1710mm Stroke
PIVOT CENTRE FOR 48°: 1400mm
CAPACITY: 8t
OIL VOLUME: 10 Litres
WEIGHT: 47kgs
Warranty: 12 month manufacturers subject to approval
Premium Italian-manufactured cylinders:
High Quality finish on the outer diameter of all tubes
Anti-friction surface, enabling sliding of steel against steel
Saline nitriding treatment resistant to wear and stress
Hoist kit includes brackets and inlet fitting
Item B x 1: 12V Single Acting Hydraulic Power pack
MAKE: Jost
TYPE: Single Acting Power pack
PART NUMBERS: JH14741415208 & JH14915500054
MOTOR: 12V / 2000W DC 2cc Motor
MAX PRESSURE: 300 Bar
PENDANT: Single Acting Pendant Control, Power up (raise) Manual down (lower) hand held pendant controller
RESERVOIR: 15lt Steel

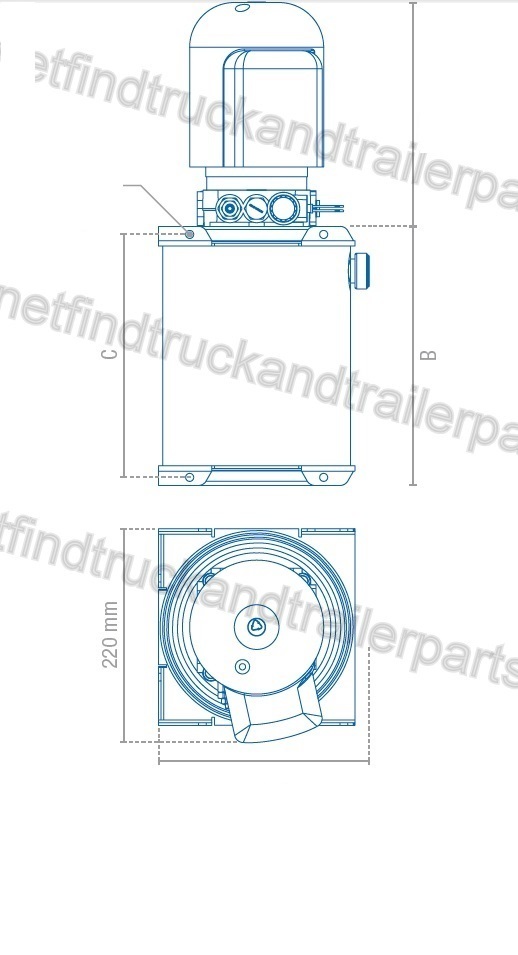

DIMENSIONS: (see image attached)
B Height: 490mm
C Height: 472mm
Height of Motor: 230mm
Top of Motor Box: 220 x 220mm
MOUNTING: Horizontal
· Available in 12v or 24v and also 8Lt or 12Lt tanks

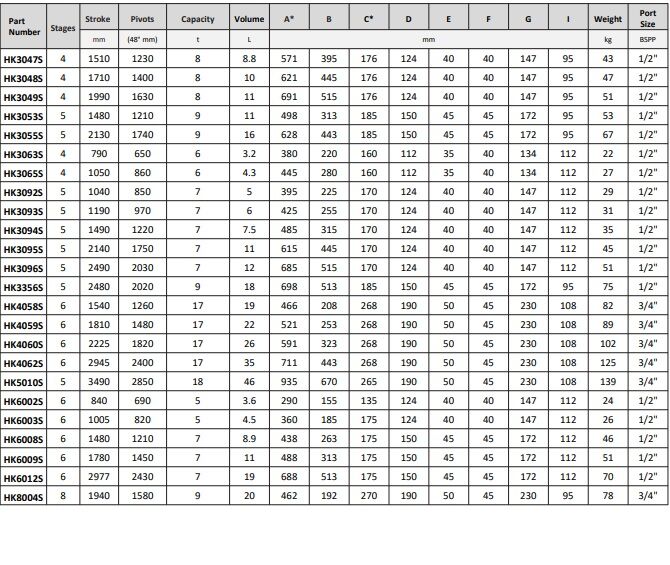

| PART NUMBER | STAGES | STROKE | PIVOT CENTRE | CAPACITY | VOLUME | DIMENSIONS (mm) | WEIGHT | PORT SIZE | |||||||
| MM | (48° mm) | t | L | A* | B | C* | D | E | F | G | I | KG | BSPP | ||
| HK3047S | 4 | 1510 | 1230 | 8 | 8.8 | 571 | 395 | 176 | 124 | 40 | 40 | 147 | 95 | 43 | 1/2" |
| HK3048S | 4 | 1710 | 1400 | 8 | 10 | 621 | 445 | 176 | 124 | 40 | 40 | 147 | 95 | 47 | 1/2" |
| HK3049S | 4 | 1990 | 1630 | 8 | 11.0 | 691 | 515 | 176 | 124 | 40 | 40 | 147 | 95 | 51 | 1/2" |
| HK3053S | 5 | 1480 | 1210 | 9 | 11 | 498 | 313 | 185 | 150 | 45 | 45 | 172 | 95 | 53 | 1/2" |
| HK3055S | 5 | 2130 | 1740 | 9 | 16.0 | 628 | 443 | 185 | 150 | 45 | 45 | 172 | 95 | 67 | 1/2" |
| HK3063S | 4 | 790 | 650 | 6 | 3.2 | 380 | 220 | 160 | 112 | 35 | 40 | 134 | 112 | 22 | 1/2" |
| HK3065S | 4 | 1050 | 860 | 6 | 4.3 | 445 | 280 | 160 | 112 | 35 | 40 | 134 | 112 | 27 | 1/2" |
| HK3092S | 5 | 1040 | 850 | 7 | 5 | 395 | 225 | 170 | 124 | 40 | 40 | 147 | 112 | 29 | 1/2" |
| HK3093S | 5 | 1190 | 970 | 7 | 6 | 425 | 255 | 170 | 124 | 40 | 40 | 147 | 112 | 31 | 1/2" |
| HK3094S | 5 | 1490 | 1220 | 7 | 7.5 | 485 | 315 | 170 | 124 | 40 | 40 | 147 | 112 | 35 | 1/2" |
| HK3095S | 5 | 2140 | 1750 | 7 | 11.0 | 615 | 445 | 170 | 124 | 40 | 40 | 147 | 112 | 45 | 1/2" |
| HK3096S | 5 | 2490 | 2030 | 7 | 12.0 | 685 | 515 | 170 | 124 | 40 | 40 | 147 | 112 | 51.0 | 1/2" |
| HK3356S | 5 | 2480 | 2020 | 9 | 18 | 698 | 513 | 185 | 150 | 45 | 45 | 172 | 95 | 75 | 1/2" |
| HK4058S | 6 | 1540 | 1260 | 17 | 19.0 | 466 | 208 | 268 | 190 | 50 | 45 | 230 | 108 | 82 | 3/4" |
| HK4059S | 6 | 1810 | 1480 | 17 | 22.0 | 521 | 253 | 268 | 190 | 50 | 45 | 230 | 108 | 89 | 3/4" |
| HK4060S | 6 | 2225 | 1820 | 17 | 26.0 | 591 | 323 | 268 | 190 | 50 | 45 | 230 | 108 | 102 | 3/4" |
| HK4062S | 6 | 2945 | 2400 | 17 | 35.0 | 711 | 443 | 268 | 190 | 50 | 45 | 230 | 108 | 125 | 3/4" |
| HK5010S | 5 | 3490 | 2850 | 18 | 46.0 | 935 | 670 | 265 | 190 | 50 | 45 | 230 | 108 | 139 | 3/4" |
| HK6002S | 6 | 840 | 690 | 5 | 3.6 | 290 | 155 | 135 | 124 | 40 | 40 | 147 | 112 | 24 | 1/2" |
| HK6003S | 6 | 1005 | 820 | 5 | 4.5 | 360 | 185 | 175 | 124 | 40 | 40 | 147 | 112 | 26 | 1/2" |
| HK6008S | 6 | 1480 | 1210 | 7 | 8.9 | 438 | 263 | 175 | 150 | 45 | 45 | 172 | 112 | 46 | 1/2" |
| HK6009S | 6 | 1780 | 1450 | 7 | 11.0 | 488 | 313 | 175 | 150 | 45 | 45 | 172 | 112 | 51 | 1/2" |
| HK6012S | 6 | 2977 | 2430 | 7 | 19 | 688 | 513 | 175 | 150 | 45 | 45 | 172 | 112 | 70 | 1/2" |
| HK8004S | 8 | 1940 | 1580 | 9 | 20.0 | 462 | 192 | 270 | 190 | 50 | 45 | 230 | 95 | 78 | 3/4" |
| *) Closed height measurement (A & C) including 20mm pull out | |||||||||||||||
All specifications subject to change without notice. Netfind accepts no responsibility for any losses incurred from any such changes, including those that occur as a result of fabrication using dimensions shown.
A tipper body will not meet Australian Standard AS1418.8, or Occupational Health & Safety regulations without a Hoist Safety Valve, or similar safety device, fitted.
Hoist capacity relates to the body weight plus the payload. This value, calculated at the rated working pressure, is an approximate indication of tipping capacity, to be used as the first criteria for hoist selection. Actual tipping capacity can only be determined by the tipper designer/manufacturer, and must consider all geometry of the tipper body and operating conditions.
Rated working pressure 150 bar. Maximum working pressure 200 bar.
Never exceed maximum pressure. Never exceed maximum hoist load.
(KIT-DNB3048S_SA12V12L)
