Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 155-4-4260C

$2,970.00

More info.

Make 4 interest-free payments of $742.50 fortnightly and receive your order now.

In Stock


Calculate Shipping

Truck Trailer TIPPING HOIST – Well Mount



MAKE:  Hidromas

TYPE:  Well Mount “Underbody”

MODEL:  155-4-4260C

DETAILS:  155mm diameter of first stage, 4 Stages, 4260mm Stroke

PIVOT CENTRE FOR 48°:  5300mm

TIPPING CAPACITY:  32T

BARREL DIMENSION:  175mm

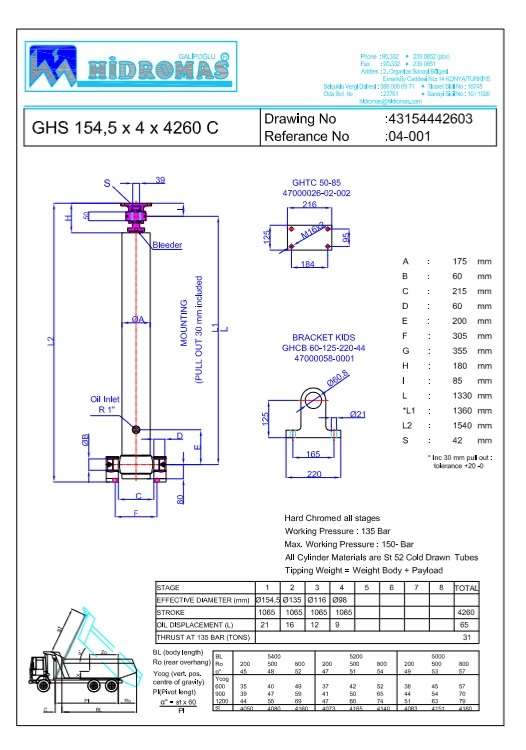

Dimensions as per attached photo/drawing are:

A.    Closed Height including 30mm pullout:  1540mm

B.    Centre of bottom trunnion pin to centre of top clevis pin:  1330mm

C.    Centre of bottom trunnion pin to bottom of hoist:  80mm

D.    Centre to centre of feet bolt holes:  305mm

E.    Maximum width of foot print:  355mm

PORT BSP:  ¾”

SWEPT VOLUME:  55 Litres

FOOT HEIGHT:  1 pair x 125mm

CLEVIS:  2



(JOT-155-4-4260C)

SKU JOT-155-4-4260C
Brand Hidromas
Shipping Weight 193.0000kg
Shipping Width 0.600m
Shipping Height 1.100m
Shipping Length 0.500m
Shipping Cubic 0.330000000m3
Unit Of Measure ea
